Products Standard headwalls
Material Concrete
Number of segments One piece
Backwall height (mm) 800
Max. pipe diameter (mm) 225 / 300
Weight (kg) 540

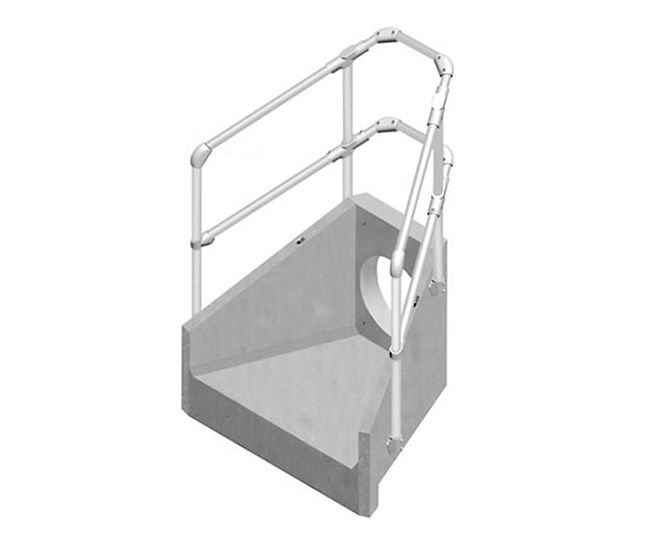

A one-piece reinforced concrete headwall to suit plastic or clayware pipes up to 300mm I.D. or PCC pipes up to 225mm I.D.

  • Stainless steel sockets are provided for the attachment of gratings
  • Lifting points are cast in to each wingwall for safe handling using Althon lifting clutches
  • Approximate weight 540kg

Max Pipe Opening PCC
225

Max Pipe Opening Plastic / Clayware
300

Backwall Height
800

Approx Headwall Weight (kg)
540


A one-piece reinforced concrete headwall to suit plastic or clayware pipes up to 300mm I.D. or PCC pipes up to 225mm I.D.

  • Stainless steel sockets are provided for the attachment of gratings
  • Lifting points are cast in to each wingwall for safe handling using Althon lifting clutches
  • Approximate weight 540kg

Max Pipe Opening PCC
225

Max Pipe Opening Plastic / Clayware
300

Backwall Height
800

Approx Headwall Weight (kg)
540





Downloads
  • H3C Datasheet and Installation Guide
    H3C Datasheet and Installation Guide
    884.19KB
    Download
  • H3C + cranked grating CAD object
    H3C + cranked grating CAD object
    292.03KB
    Download
  • H3C + extended toe CAD object
    H3C + extended toe CAD object
    288.09KB
    Download
  • H3C + sloped grating CAD object
    H3C + sloped grating CAD object
    284.16KB
    Download
