Automatic / manual Manual
Features Lockable
Two way
Material Steel
Crash rating IWA 14
Span (m) Up to 9m

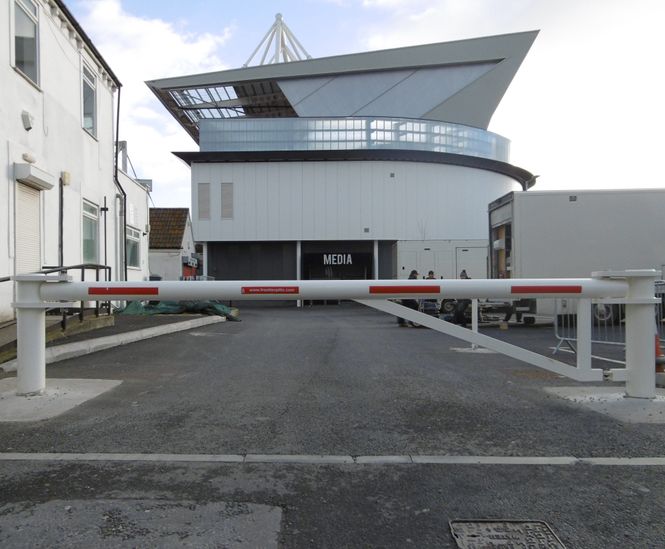

IWA 14-1 Terra 180° is a bi-directional, lightweight manual swing HVM gate that is easy to install and operate.

It has been impact tested to IWA-1 stopping a 7.2t vehicle travelling at 48kph (30mph).

The Terra 180° can secure entrances up to 9 metres. It is suitable for access points which need to be secured with occasional access, out of hours security, or remote locations with power supply restrictions.

The swing gate is available with right or left hand hinging, allowing the impact beam to be opened in either direction to suit site requirements.

Installation is simple, requiring a shallow foundation embedment depth of just 350mm.

The Terra 180° gate is secured by an anti-tamper locking mechanism that encases the gate's locking pin and is resistant from attack by hand tools and battery powered tools.

Benefits and features

  • Successfully impact tested to the International IWA 14-1 specification
  • Bi-directional swing gate configured to suit site conditions
  • Manual operation ideally suited to remote locations with power supply restrictions
  • Contemporary, sleek design
  • Installed in shallow foundation (350mm depth required)
  • Easy to install and operate
  • Secured by an anti-tamper locking mechanism
  • Resistant to attack from hand and battery powered tools.


IWA 14-1 Terra 180° is a bi-directional, lightweight manual swing HVM gate that is easy to install and operate.

It has been impact tested to IWA-1 stopping a 7.2t vehicle travelling at 48kph (30mph).

The Terra 180° can secure entrances up to 9 metres. It is suitable for access points which need to be secured with occasional access, out of hours security, or remote locations with power supply restrictions.

The swing gate is available with right or left hand hinging, allowing the impact beam to be opened in either direction to suit site requirements.

Installation is simple, requiring a shallow foundation embedment depth of just 350mm.

The Terra 180° gate is secured by an anti-tamper locking mechanism that encases the gate's locking pin and is resistant from attack by hand tools and battery powered tools.

Benefits and features

  • Successfully impact tested to the International IWA 14-1 specification
  • Bi-directional swing gate configured to suit site conditions
  • Manual operation ideally suited to remote locations with power supply restrictions
  • Contemporary, sleek design
  • Installed in shallow foundation (350mm depth required)
  • Easy to install and operate
  • Secured by an anti-tamper locking mechanism
  • Resistant to attack from hand and battery powered tools.
