Frame Mild steel
Fixing Root fixed
Surface / baseplate fixed
Dimensions (w x d x h) 800 (h) x 300 (below ground) x 1500mm (l)

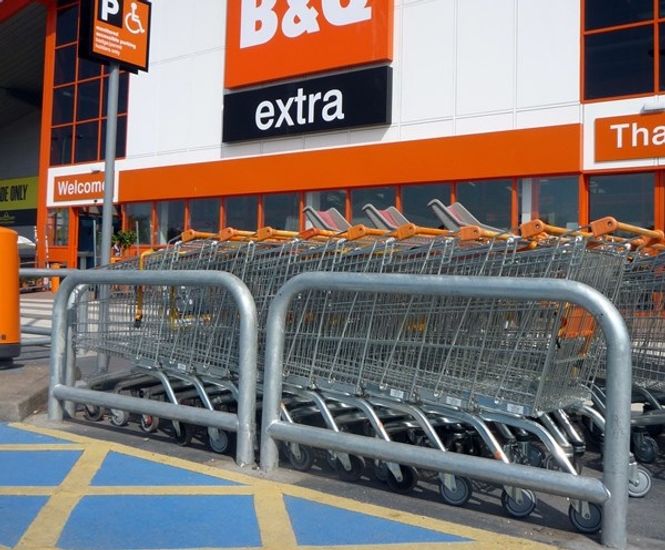

Galvanised steel trolley bays are made up of individual perimeter barriers and can be made to any size to suit customer requirements.

The barrier is 800mm above ground and is available with an extra central rail (200mm aboveground).

Features

  • Galvanised mild steel tube
  • Individual barriers available up to 2500mm
  • Available ragged for casting in or flanged for bolting down

Specifications

  • 800mm above ground
  • 300mm below the ground (ragged only)
  • 3mm wall thickness
  • Tube diameter 48, 64 and 76mm

Options

  • Stainless steel (grade 304)
  • Colour coated finishes - RAL/ BS numbers must be specified at time of order
  • 3 bolts required for bolting down


Galvanised steel trolley bays are made up of individual perimeter barriers and can be made to any size to suit customer requirements.

The barrier is 800mm above ground and is available with an extra central rail (200mm aboveground).

Features

  • Galvanised mild steel tube
  • Individual barriers available up to 2500mm
  • Available ragged for casting in or flanged for bolting down

Specifications

  • 800mm above ground
  • 300mm below the ground (ragged only)
  • 3mm wall thickness
  • Tube diameter 48, 64 and 76mm

Options

  • Stainless steel (grade 304)
  • Colour coated finishes - RAL/ BS numbers must be specified at time of order
  • 3 bolts required for bolting down
