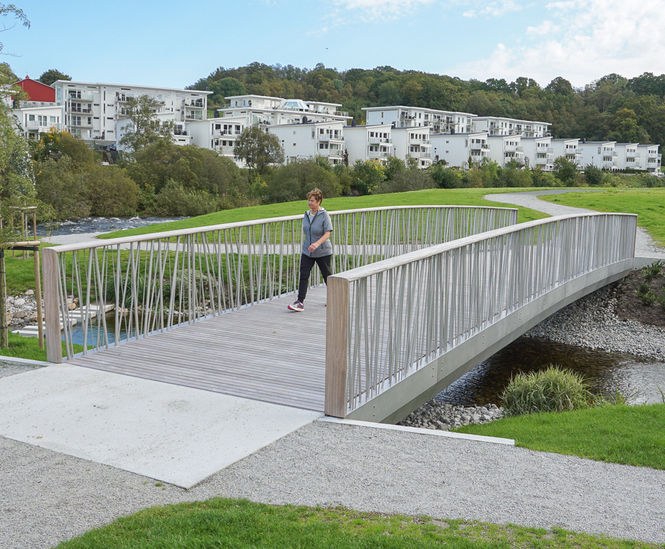

The Bowie Bridge was inspired by the David Bowie song ‘Wild is the Wind’. The continuous fencing system of criss-crossed balusters is uninterrupted by posts. Round stainless steel bars have alternating diameters (max 30mm), resulting in a robust and rigid fence.

This fencing was specifically designed to prevent the possibility of users getting stuck between the balusters. If desired, the baluster pattern can be made denser in order to meet the most stringent safety standards. The Bowie Bridge is available in a slightly arched or flat version. The bridge’s maximum, uniformly distributed load-bearing capacity is 5kN/m² (EU) - 90lbs/ft² (US) - 85 lbs/ft² (CA).

Bowie Bridges are available in a corten or powder-coated steel version in which the round balusters are replaced by corten steel strips. A robust rounded handrail of FSC hardwood sets off the fencing and is pleasant to the touch. A linear LED lighting line can be included in the fencing system and is fully integrated in the handrail.

Finishes

  • Corten steel

  • Powder-coated steel

  • Stainless steel

Possibilities and constraints

  • Single span max length c16m

  • Available flat or arched

  • Max width c300cm advised due to the decking material

  • Main dimensions can be customised on request

  • Norm bridge: Eurocode + nat annex

  • Norm fence: NPR-CEN/TR 16949:2016
