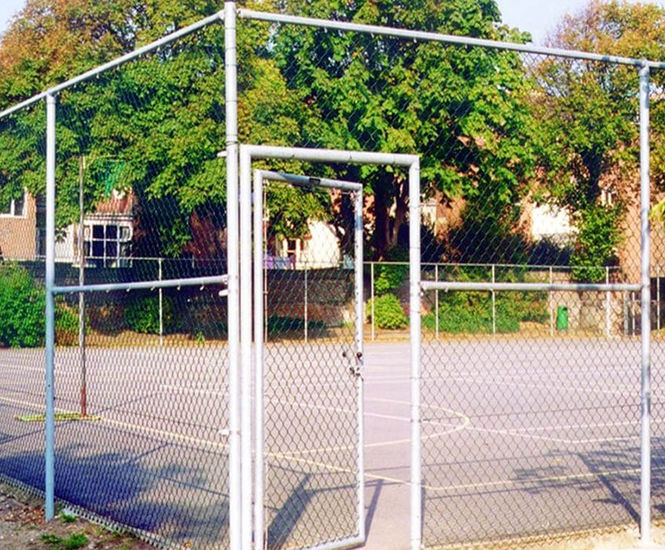

Chain link gates provide an access control solution to match Jacksons chain link fencing systems.

Constructed with a hot dip galvanised tubular frame, they are light and easy to install.

Barbed wire or tape topping can be added for extra security.

Key features

  • Galvanised finish with optional polyester powder coating

  • Single or double leaf for industrial use etc

  • Security options - extensions for barbed wire or tapes

  • Tubular construction for extra strength - less vulnerable to vandals

The standard chain link gates are made for 980mm opening and are 50mm shorter than the fence height. They are right or left handed and clad with either galvanised or galvanised and green coated chain link. The framing is made from 42mm diameter galvanised tube. The gates come ready for hanging complete with hinge pins, and bolts for attaching to the end strainer.

Single or double-leaf gates can be supplied for industrial use to almost any specification and degree of security. Gates can be made to suit various conditions and to hang in line between posts for 90 degree opening or behind the posts for 180 degree openings.

Hinge pins with bolts for attaching to end strainer posts, included free of charge with gates.

  • Galvanised hinge pin for tubular system 307600

  • Galvanised hinge pin for angle iron 307700

  • Black hinge pin for angle iron 307770

Standard finishes

  • Hot dip galvanised to BS EN ISO 1461 as standard

  • Hot dip galvanised and powder coated to BS EN 13438

  • Marine coat for installations within 500m of salt water or an estuary

Standard Colours

  • Black RAL 9005

  • Green RAL 6005

  • Other colours are available on request
