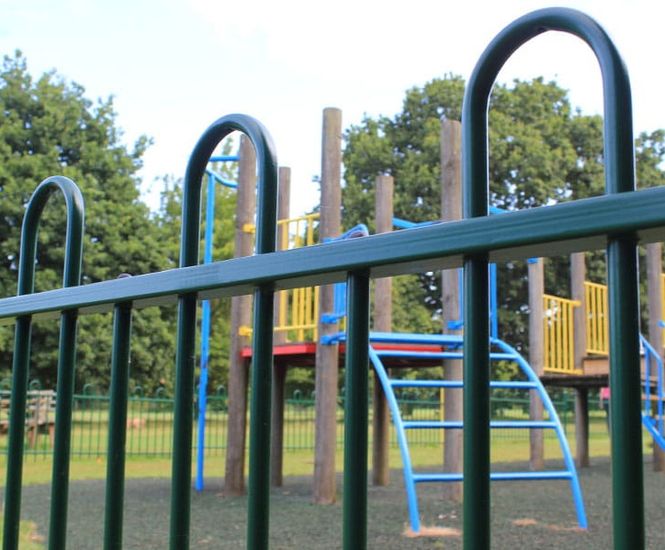

Anti-trap bow-top RoSPA approved - play area fencing

Anti Trap Bow Top fencing provides permanent protection for play areas.

Featuring welded tubular pale-through-rail design and vandal proof connectors to provide a strong structure without visible joints.

A key point in the design is the wider gap between each hoop above the top rail. This prevents children getting their heads, necks or limbs stuck between pales.

The design fully conforms to play fence standards in BS EN 1176.

Features and benefits

• Inherently safe

• Strong welded pale through rail construction

• Vandal-proof connectors

• Domed top post caps

• RoSPA approved

• Conforms to BS EN 1176 play fence standards

• Matching gates are available with optional self-closing operation

• Custom designs are available

Finishes

• Galvanized to BS EN 1461 as standard

• Galvanized and powder coated to BS EN 13438 in a standard colours (extra cost)

• Powder coating to any other BS or RAL colour (special order)

Dimensions

• Overall height 1.0, 1.2, 1.5, 1.8m

• Wire / bar / pale size Pales - 19mm Ø

• Post centres 2.775mm

• Post sections 60.3mm

Design

Dwg files are available on request.

Anti Trap Bow Top Fencing Specification
