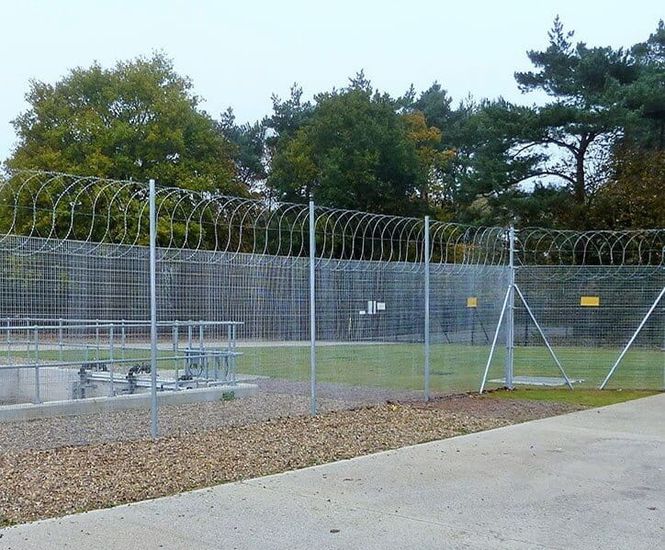

The Trident® Mesh 2 system has been designed to provide the performance of a conventional Class 2, 75mm x 25mm galvanised, welded mesh fence but with additional benefits of reduced installation times and reduced costs.

This rapidly installed fence system uses Jacksons unique process, mechanically driving the posts in place on a cushion of air in a single operation. Only the end and corner posts are set in concrete foundations.

The mesh is fixed to end posts with tamper proof stretcher bars and tensioned with line wires to ensure the mesh stays taut across its face.

Key Features

  • Driven intermediate posts

  • Rapid deployment security fence

  • complete with 3 row barbed wire topping

  • Stretcher bar fixings at end and corner posts fro strength and tamper resistance

Applications

  • Transport

  • Oil and energy

  • Government

  • Water

  • Power stations

  • Solar farms

  • Communications

  • Ports

Specification

  • Driven intermediate posts

  • Rapid deployment security fence

  • Complete with 3 row barbed wire topping

  • Stretcher bar fixing at end and corner posts for strength and tamper resistance

  • Matching gates are available

  • 25-year guarantee

Finishes

  • Posts are hot dip galvanized to BS EN 1461 for protection inside and out

  • Posts may be specified powder coated to BS EN 13438 in any BS or RAL colour, if required

  • Marine coat - for installations near salt water

Trident® Mesh 2  Panel Specifications

Height (mm)

Post Centres (mm)

Post Dimensions (mm)

Topping

3000

3000

Dimensions to suit fence

600

*This product is NPSA (previously known as CPNI) approved at the tested height, other heights/specifications are available for this product on request
