Body material Corten steel
Fixing Root fixed
Surface / baseplate fixed
Aboveground height (mm) 1000mm
Belowground height (mm) 250mm
Diameter / width (mm) W: 100mm, 200mm x D: 200mm

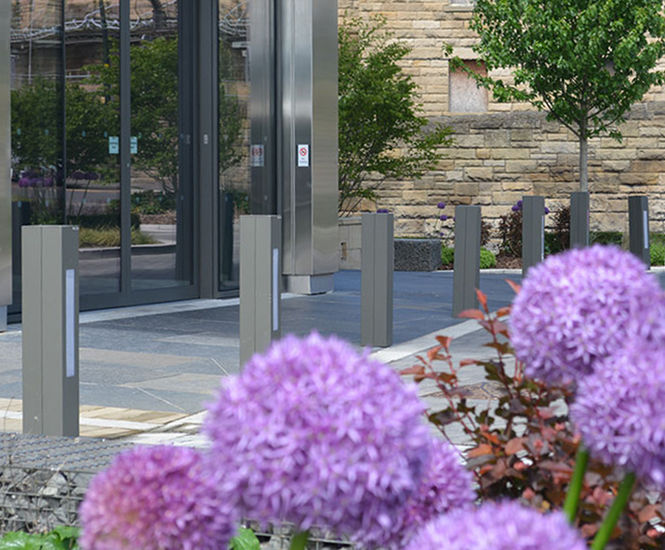

The Vision Bollard is made entirely out of 10mm thick steel sheet featuring a square base. The rectangular window in the centre of the structure is adorned with opaque compact polycarbonate sheets which are illuminated by a made-to-measure 13W incandescent bulb. The whole structure is suitably shaped and finished with a powder coated finish or a corten process which is sandblasted and treated with a unique oxidisation cycle. Ground fixing is suitable with steel ground fixing anchors (not included), or by placing the extended end of the bollard 250mm deep into concrete foundations. All fixings are stainless steel.


The Vision Bollard is made entirely out of 10mm thick steel sheet featuring a square base. The rectangular window in the centre of the structure is adorned with opaque compact polycarbonate sheets which are illuminated by a made-to-measure 13W incandescent bulb. The whole structure is suitably shaped and finished with a powder coated finish or a corten process which is sandblasted and treated with a unique oxidisation cycle. Ground fixing is suitable with steel ground fixing anchors (not included), or by placing the extended end of the bollard 250mm deep into concrete foundations. All fixings are stainless steel.
