Automatic hinged/swing security gates are made from welded low carbon steel and designed for high-security access where sliding gates are not suitable. Available in single- or double-leaf, manual or automatic models, with a range of infill and finish options to suit different architectural styles and site requirements.

  • High-security gates for vehicle and pedestrian access within a fenceline

  • Single-leaf up to 5000mm wide, double-leaf up to 10000mm wide, heights from 2400mm to 5000mm

  • Automatic models powered by actuators; manual versions also available

  • Customisable infills including bar, weldmesh, sheet, wood, and ornate designs

  • Continuous operation capability (100% duty cycle)

  • Safety features include vehicle detector loops, photocells, ultrasonic sensors, and safety edges

  • Wide choice of access control systems

  • Range of finishes and RAL colours to match project requirements

Applications

  • Commercial and industrial site entrances

  • Residential developments

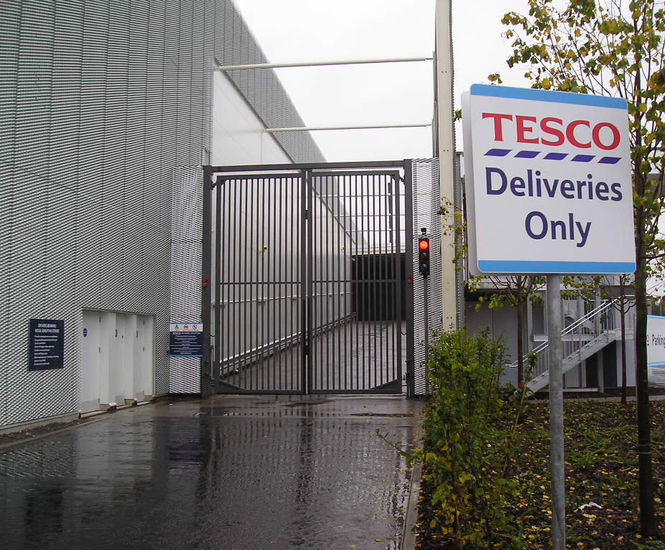

  • Retail and supermarket access control

  • Police stations and secure facilities

  • Utility and infrastructure sites

  • Underground car parks

  • Storage centres

Dimensions

Single-leaf maximum width 5000mm

Double-leaf maximum width 10000mm

Standard height 2400mm

Maximum height 5000mm

Materials

Low carbon steel to BS4848 Pt.2

Vertical 50mm x 25mm ERW bar infill at 180mm centres

50mm square galvanised weld mesh backing

Colours

Any RAL colour

Finish

Shotblasted, hot zinc sprayed, primed and polyurethane painted

Acid dipped and hot galvanised (smaller gates)

Options and variations

Manual or automatic operation

Custom infill options including wood and ornate designs

Bespoke sizes available

Installation

Gate post foundation: 1600mm (L) x 1300mm (W) x 1000mm (D)

Power and control wiring ducts incorporated into foundations
