Gate type Sliding gates (cantilevered)
Span (m) 12m
Max. height (mm) 5m

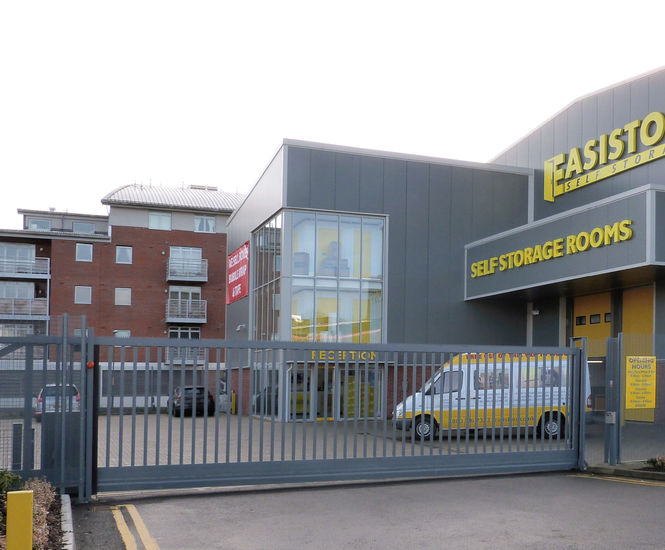

The Security Sliding Gate is a cantilevered gate which requires no ground track or support across the roadway. The gateleaf is supported by a main bottom beam, which slides 100mm above the road surface. The balance is provided by a unique runback track, which enables the gate to be fully projected across the roadway without tipping.

100% duty rated - designed for continuous and frequent use. Power is supplied from a single phase 230V supply.

Safety control systems

  • Vehicle detector loops
  • Photocells
  • Ultra-sonic sensors
  • Safety edges

Accessories

  • Signage
  • Audible alarms
  • Flashing beacons

Access controls

A wide range of access control systems is available.


The Security Sliding Gate is a cantilevered gate which requires no ground track or support across the roadway. The gateleaf is supported by a main bottom beam, which slides 100mm above the road surface. The balance is provided by a unique runback track, which enables the gate to be fully projected across the roadway without tipping.

100% duty rated - designed for continuous and frequent use. Power is supplied from a single phase 230V supply.

Safety control systems

  • Vehicle detector loops
  • Photocells
  • Ultra-sonic sensors
  • Safety edges

Accessories

  • Signage
  • Audible alarms
  • Flashing beacons

Access controls

A wide range of access control systems is available.





Downloads
  • Sliding Cantilevered Gate
    Sliding Cantilevered Gate
    579.98KB
    Download



Enquire
