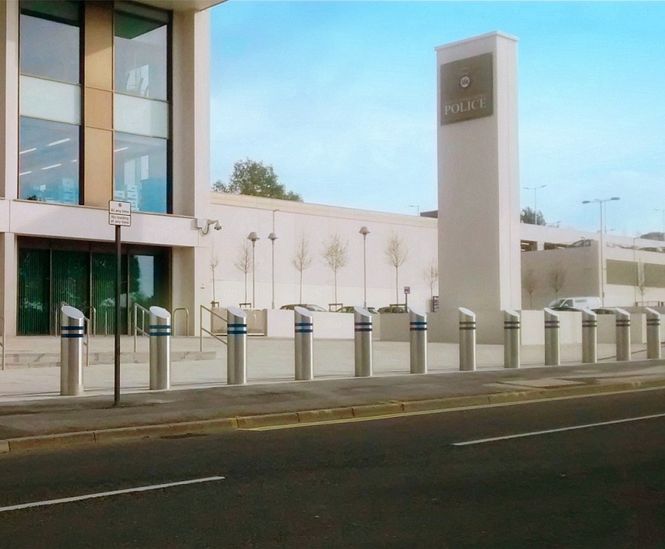

PAS 68 Terra Jupiter from Frontier Pitts are static hostile vehicle mitigation (HVM) bollards designed to stop a 7.5 tonne vehicle travelling at 50mph. Made from S355 structural steel, these static bollards are impact-tested to PAS 68 and IWA 14 standards, with a range of finishes and sleeve options for different design requirements.

  • Hostile vehicle mitigation bollard range tested to PAS 68 and IWA 14

  • Stops a 7.5t vehicle at 50mph (1852kJ impact energy)

  • Made from S355 structural steel for strength

  • Choice of painted or stainless steel finishes, with decorative sleeve options

  • Embedment depth of only 500mm for installation flexibility

  • Height above ground approximately 1000mm, 273mm diameter

  • Secured by Design and BRE Global Civil Engineering accreditations

Applications

  • Perimeter security for public spaces

  • Protection of building entrances

  • Critical infrastructure sites

  • Government and military facilities

  • Transport hubs

  • Commercial and retail environments

Dimensions

Height above ground 1000mm approx

Diameter 273mm

Embedment depth 500mm

Performance

PAS 68 classification: V/7500[N3]/80/90:10.5/11.1

Impact energy 1852kJ (7.5t at 50mph)

Materials

S355 structural steel

Finish

Shotblasted, hot zinc sprayed (galvanised), primed, polyurethane paint

Optional 316 stainless steel satin or bead blasted sleeves with dome or mitre tops

Options and variations

Decorative sleeves with mitre or dome tops, colour bands, engraving

Installation

Foundation Type C, embedment depth 500mm

Installed at 1200mm between upright faces to meet PAS 69 guidelines

Accreditations

PAS 68, IWA 14, Secured by Design, BRE Global Civil Engineering
