PAS 68 Terra Neptune shallow standalone bollards are hostile vehicle mitigation (HVM) static security posts made from S355 structural steel, impact-tested to stop a 7.5 tonne vehicle at 40mph (64kph). Designed for shallow foundation installations, these bollards are suitable for high-security applications where minimal excavation is required.

  • Static security bollard for hostile vehicle mitigation with shallow foundation depth

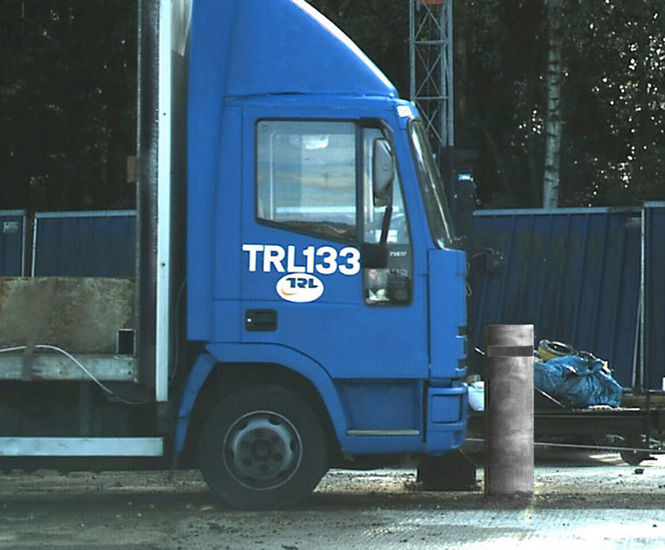

  • Impact-tested to PAS 68 standard, stopping a 7.5t vehicle at 40mph (1185kJ)

  • Made from S355 structural steel for strength and durability

  • Above ground height 1000mm, 273mm diameter

  • Polyester powder coated as standard, with stainless steel and decorative sleeve options

  • Secured by Design and BRE Global accredited

  • Range of sleeve finishes and reflective banding options for visual integration

Applications

  • Perimeter security for public spaces

  • Protection of building entrances

  • Critical infrastructure sites

  • Government and military facilities

  • Transport hubs

  • Commercial and retail environments

Dimensions

Height above ground: 1000mm

Diameter: 273mm

Shallow depth embedment: 230mm

Performance

PAS 68 tested to stop 7.5t vehicle at 40mph (1185kJ)

PAS 68 classification code: V/7500[N2]/64/90:0.0/0.0

Materials

S355 structural steel

Finish

Shotblasted, hot zinc sprayed (galvanised), primed, polyurethane paint

Optional 316 stainless steel satin or bead-blasted sleeves

Polyester powder-coated sleeves

Reflective banding options

Options and variations

Mitre and dome top sleeve designs

Range of sleeve finishes and colour bands

Decorative sleeve options

Installation

Shallow foundation type B, 230mm embedment

Accreditations

PAS 68

Secured by Design

BRE Global Civil Engineering
