Material Cast iron
Features Fixed / static
Reflective
Removable / lift out
Fixing Root fixed
Surface / baseplate fixed
Aboveground height (mm) 1100
Belowground height (mm) 485
Diameter / width (mm) 145

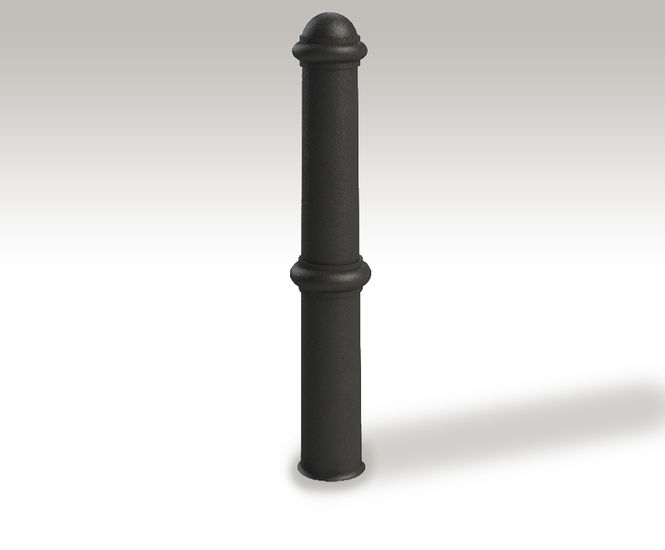

Traditional cast iron bollard.

Manufactured from grade 250 cast iron.

Supplied in Fixed Version as standard, finished in Williamsons Metal Primer.

Options

Removable, Fold Down or Trough Fold Down versions.

Dulux Weathershield Rust Resistant Paint System in most BS or RAL colours.

Rings, logos, emblems, coats of arms can be cast on to side of bollards.

Reflective bands can be applied in white, red or yellow.

Internal Thick Walled Sleeves for additional ram raid resistance.

Meets DDA requirements



BIM Objects Available


Traditional cast iron bollard.

Manufactured from grade 250 cast iron.

Supplied in Fixed Version as standard, finished in Williamsons Metal Primer.

Options

Removable, Fold Down or Trough Fold Down versions.

Dulux Weathershield Rust Resistant Paint System in most BS or RAL colours.

Rings, logos, emblems, coats of arms can be cast on to side of bollards.

Reflective bands can be applied in white, red or yellow.

Internal Thick Walled Sleeves for additional ram raid resistance.

Meets DDA requirements



BIM Objects Available
