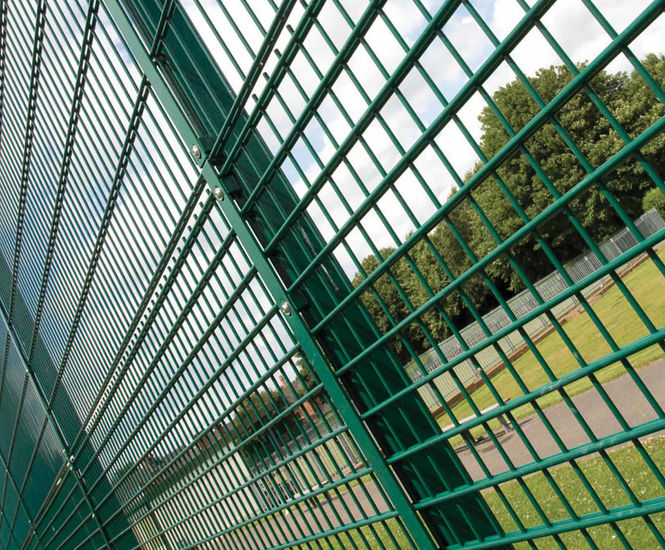

Dulok Sport double wire panel fencing system is designed for use in sports pitches and multi-games areas. The system uses CLD's proprietary post and clamp bar system which provides a rapid and simple method to secure the installation.

The twin wire design is rigid, making Dulok Sport strong even when under stress from people, balls or sports equipment.

All posts and clamps are supplied galvanised only or galvanised and polyester powder-coated in colours to match the fencing panels.

  • Double wire panel fencing for ball sports pitches

  • Heights up to 6m high

  • Twin 8mm horizontal wires with 6mm vertical wire

  • Rebound mesh aperture 66.5 x 50mm

  • Compatible with Dulok 200x50mm mesh panel system

  • Full Length Clamp Bar

  • Galvanised and polyester powder coated

  • Full range of RAL colours

  • Rapid and secure installation using proprietary post and clamp bar systems

Applications

  • Multi-Use Games Areas (MUGAS)

  • Tennis courts

  • Hockey pitches

  • Professional grade pitches

Dimensions

Heights
1.2 to 6m nominal heights

Panel Width
2506mm

Mesh Size
66.5 x 50mm for rebound panels
Rebound panels can be full or partial height
Can be paired with Dulok 200x50mm panels

Wire Diameter
2x 8mm horizontal wires, 1x 6mm vertical wire

Top Edge Projection
30mm (Can be inverted to give flush edge)

Posts
60 x 40mm RHS to 120 x 60mm RHS dependant on height

Corner Posts
60 x 40mm RHS to 120 x 60mm RHS dependant on height

Post Centres
2520mm

Fixing
40 x 5mm full length steel clamp bar.
Pin hex or Sheardrive security screws.
Rubber grommets available for noise reduction.

Finish

Galvanised and polyester powder coated.
Standard colour is Green RAL 6005.
Other RAL colours on request.

Sloping ground

Panels can be stepped as required within the clamp bar system. Where gradients exceed 1:16 it is recommended that taller panels are either part-buried or additional posts are used.
