Siena: mild steel railing fence with conified top
A mild steel railing fence made from vertical tubular bars with conified tops, framed top and bottom by pressed steel channel sections bolted to RHS or flat bar posts. Stepping: The post can be drilled on site with additional holes to allow panels to accommodate uneven ground. Non-standard panel widths: Panels can be shortened on site to suit ends
Click for full image

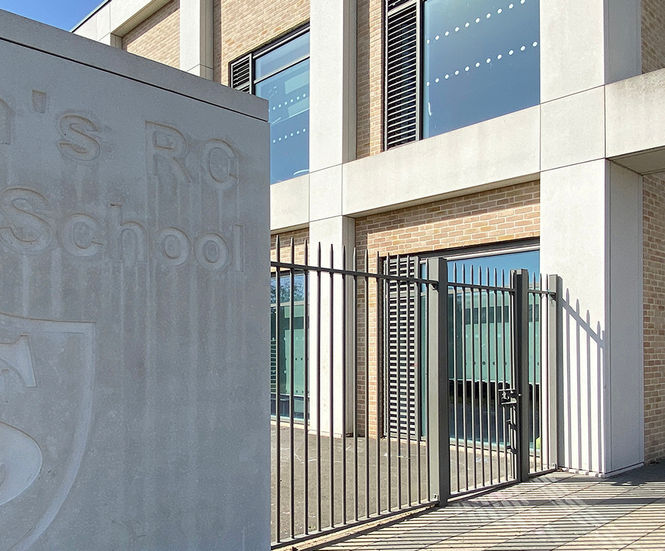

Siena 2200mm-high railing fence with pedestrian gate – St John’s Primary School
A mild steel railing fence made from vertical tubular bars with conified tops, framed top and bottom by pressed steel channel sections bolted to RHS or flat bar posts.
Stepping: The post can be drilled on site with additional holes to allow panels to accommodate uneven ground.
Non-standard panel widths: Panels can be shortened on site to suit ends of fence runs and fixed using hidden sleeves fitted to the rails.
Fence heights: 1100, 1360, 1496, 1628
Panel width: 2000mm
Posts: 60x8mm flat bar; 50x30mm RHS
Fence height:1800
Panel width: 2460mm
Posts: 80x8mm flat bar; 60x40mm RHS
Fence heights: 2000, 2400mm
Panel width: 2460mm
Posts: 80x8mm flat bar; 80x40mm RHS
Finish: hot dip galvanized for a long lasting, durable finish with an optional polyester powder coating in any RAL colour.
