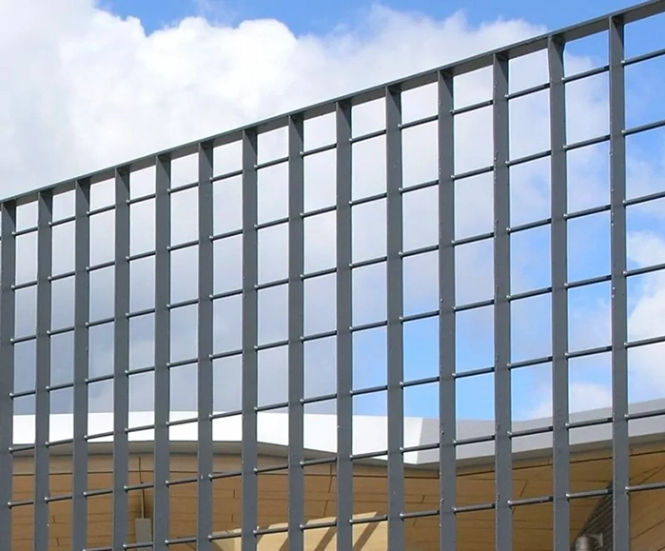

Palermo-HS high-security grating fence is made from welded steel panels fixed directly to IPE posts with tamper-resistant bolts, designed for perimeter security and resistance to vandalism. Panels are hot dip galvanised with optional polyester powder coating and comply with BS 1722-14.

  • High-security steel fence system for perimeter protection

  • Direct panel-to-post fixing with no lugs for strong connections

  • Panels bolted to 100 x 55mm IPE posts using stainless steel dome-headed bolts and snap-off nuts

  • Optional cranked extensions for barbed wire or inclined panels

  • Anti-intruder spiked top bars can be added to gates or panels

  • Hot dip galvanised finish with optional RAL colour powder coating

  • Matching swing, bi-folding, pivot and sliding gates available

  • Complies with BS 1722-14 for grating fences

Applications

  • High-security sites

  • Industrial perimeters

  • Utility infrastructure

  • Transport facilities

  • Public sector boundaries

  • Vandal-prone areas

Dimensions

Panel heights: 2000, 2200, 2400, 2600, 2900mm (nominal)

Panel width: 1890mm (nominal)

Mesh size: 43 x 44mm (centre to centre)

IPE post: 100 x 55mm

Materials

Welded steel panels

Stainless steel fixings

Colours

Optional RAL colours

Finish

Hot dip galvanised

Polyester powder coating (optional)

Options and variations

Cranked extensions for barbed wire or inclined panels

Anti-intruder spiked top bars

Single, double, bi-folding, pivot, and sliding gates with matching infill panels

Accreditations

Complies with BS 1722-14
