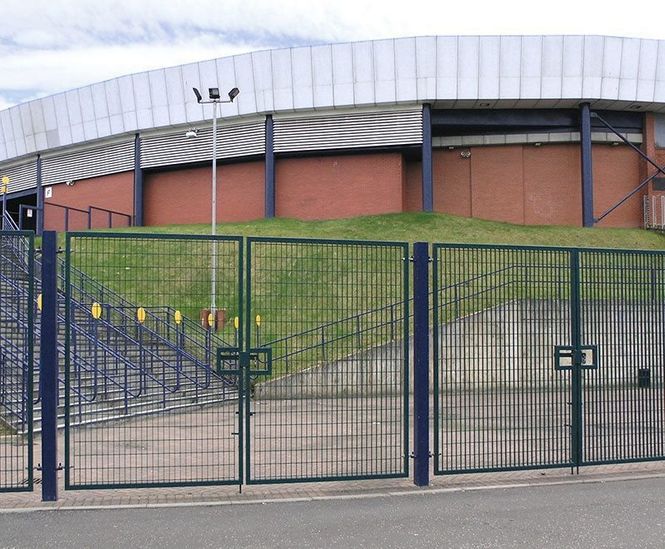

Roma-4HS has been designed with special features to provide an extremely high level of perimeter security and excellent resistance to vandalism.

Features and benefits

  • High level of perimeter security and resistance to vandalism

  • Direct panel to post fixing without lugs for strong connection

  • Stainless steel M10 dome headed bolts and snap-off nuts for secure assembly

  • Flanges on IPE posts protect fixings

  • Hot-dip galvanised with optional polyester powder coating in any RAL colour

  • Compliance with BS 1722-14

  • Perimeter security fencing for sites requiring enhanced protection

  • Suitable for locations where vandal resistance is important

Physical attributes

Mesh size (centre to centre): 62×132 mm

Standard panel heights (nominal): 2000, 2200, 2400, 2600, 2900 mm

Standard panel width (nominal): 1890 mm

IPE post dimensions: 100×55 mm

Narrow width closing panel supplied for end of fence runs Swing-hinged single or double leaf, bi-folding, pivot and sliding gates with matching infill panels.

Materials

Panels made from flat bars Posts made from IPE steel sections Stainless steel M10 dome headed bolts and snap-off nuts

Finish

Hot-dip galvanised Optional polyester powder coating in any RAL colour

Options and variations

Posts with cranked extensions for barbed wire or inclined panels Anti-intruder spiked top-bars for gates or fence panels

Performance

High resistance to vandalism Strong panel to post connection

Installation

Direct panel to post fixing without lugs Outside flat bars bolted to IPE posts Flanges of IPE post protect the bolt

Manufacture

Manufactured in compliance with BS 1722-14
