Tree root protection
Tree root protection systems work by providing structural support to prevent soil compaction and consequent damage to shallow root structures. Tree root protection can be achieved using geocells, geocellular tree root cages, tree root bridges, tree grilles, permeable resin bound surfacing and root barriers.
The most common solution for new roads and driveways is to use three dimensional geocells to strengthen porous infill materials thereby protecting tree roots from compaction.
Tree root barriers help protect tree roots by stopping them damaging pavements, walls and pipework.
Urban tree roots can be protected by using cellular cages to prevent soil compaction and provide structural support for tree grilles and porous resin bound tree pit surfacing.
Tree root bridges provide structural support when construction is planned near existing trees and can be used to extend car parking provision or for building new pathways and staircases.
Geoweb® - tree root protection system
Greenfix is the UK supplier of the Geoweb® tree root protection (TRP) system, which is the control measure for the Arboricultural Method Statement as outlined in BS 5837:2012, the Town and Country Planning Act 1990, and Arboricultural Practice Note 12 (APN12). Geoweb® is a 3D structure that provides strength to the porous infill materialGreenfix Soil Stabilisation & Erosion Control- PRODUCT
TERRAM RootGuard™ - tree root barrier
TERRAM RootGuard™ protects pavements, underground services, walls and foundations from damage caused by tree roots. It has high tensile strength, high puncture resistance and is capable of withstanding the differential forces that can develop in clay soils. Tree roots growing underneath lawns, paths, drives, patios and roads can lift or crack theTerram- PRODUCT
Terram HDPE Geocells for tree root protection
Terram HDPE Geocells are a robust 3D cellular confinement system designed to improve soil stabilisation, erosion control, and increase load support. Terram HDPE Geocell are APN 12 compliant by UK Arboricultural Associations for tree root protection. Compared to traditional construction methods, Terram HDPE Geocells are a cost-effective andTerram- PRODUCT
Geoweb® Tree Root Protection - Case Study Stanmore
A condition of planning approval for a care home extension was the protection of a mature oak tree from the effects of a 2 tonne piling rig crossing the RPA. The requirement was for there to be no detrimental compaction of the ground over the roots. Greenfix worked with the client and consultants to establish a cost effective temporary optionGreenfix Soil Stabilisation & Erosion Control- PROJECT
gtFortress Tree Grille
The gtFortress Tree Grille offer a stylish and practical tree grille with the urban setting in mind. The design allows paving to be continued almost up to the tree trunk, protecting the trees root system from urban traffic and soil compaction but also allowing rainwater through to maximise irrigation and urban drainage. To ensure the maintenanceGreen-tech Specifier- PRODUCT
Steel Tree Grilles
The Steel Tree Grilles offer great tree root protection in urban landscaping environments. Steel Tree Grilles protect tree’s roots allowing them to receive natural water. This prevents the soil in the tree pit being compacted, protecting the root system from vehicle and pedestrian damage. gtDentdale Tree Grille sizes available: 1000mm x 1000mmGreen-tech Specifier- PRODUCT
ASF 303 recycled cast iron tree grille
Manufactured in the UK from 100% recycled, engineering grade 250 cast iron. Can be supplied with apertures for uplighting and irrigation systems Also available in ductile iron. BIM objects availableArchitectural Street Furnishings- PRODUCT
ASF 321 recycled cast iron tree grille
Manufactured in the UK from 100% recycled, engineering grade 250 cast iron. Available in all grades of recycled ductile cast iron. Apertures for uplighters and irrigation systems available Bespoke adaptions available. BIM objects availableArchitectural Street Furnishings- PRODUCT

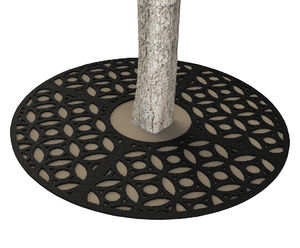

ASF 323 recycled cast iron tree grille
Manufactured in the UK from 100% recycled, engineering grade 250 cast iron. Available in all grades of recycled ductile cast iron. Apertures for uplighters and irrigation systems available Bespoke adaptions available. BIM objects availableArchitectural Street Furnishings- PRODUCT

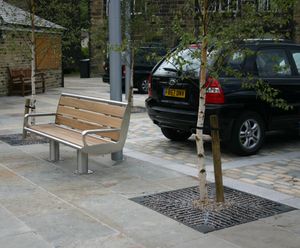

ASF 327 recycled cast iron tree grille
Manufactured in 100% recycled cast iron at ASF's own foundry. Recycled and recyclable. Incredibly long-lasting - a grille is expected to last far in excess of 100 years. Good for the tree - iron oxide forming on the grille actually promotes green growth. Apertures for irrigation systems and uplighters are available BIM objects availableArchitectural Street Furnishings- PRODUCT

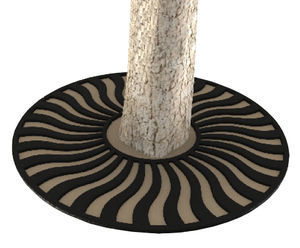

ASF 333 recycled cast iron tree grille
manufactured in 100% recycled cast iron; 100% UK Manufacture; also available in any grade of ductile (SG) iron; bespoke adaptions available; additional apertures for irrigation systems and / or uplighters available; complete with support frames; matching tree guards availableArchitectural Street Furnishings- PRODUCT
ASF 335 recycled cast iron tree grille
The ASF 335 tree grille is manufactured in the UK from 100% recycled cast iron: also available in ductile cast iron; can be finished to any colour spec; materials: 100% recycled engineering grade 250 cast iron as standard. Also available in any grade of recycled ductile cast iron; standard finish: Zinc rich primer and metal shield top coatArchitectural Street Furnishings- PRODUCT
ASF 336 recycled cast iron tree grille
Manufactured in 100% recycled cast iron in ASF's own on-site, UK-based foundry. Also available in ductile iron. Additional apertures for uplighters and irrigation systems available BIM objects availableArchitectural Street Furnishings- PRODUCT

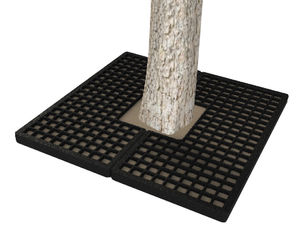

ASF 304 recycled cast iron tree grille
The ASF 304 iron tree grille is manufactured in the UK in 100% recycled, engineering grade 250 cast iron. Can be manufactured with apertures to host uplighters or irrigation systems Also available in ductile iron. BIM objects availableArchitectural Street Furnishings- PRODUCT

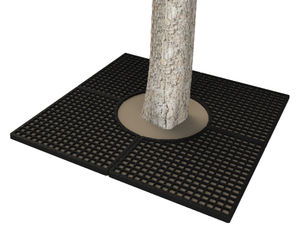

ASF 308 recycled cast iron tree grille
Manufactured in the UK from engineering grade 250 cast iron - 100% recycled. Can have apertures incorporated for uplighters and irrigation systems Also available in ductile iron. BIM objects availableArchitectural Street Furnishings- PRODUCT
ASF 337 recycled cast iron tree grille
Manufactured in the UK from 100% recycled, engineering grade 250 cast iron. Available in any grade of ductile cast iron. Additional apertures can be incorporated to host irrigation systems and uplighters Bespoke adaptions available. BIM objects availableArchitectural Street Furnishings- PRODUCT
ASF 332 recycled cast iron tree grille
Manufactured in the UK from 100% recycled, engineering grade 250 cast iron. Available in all grades of recycled ductile cast iron. Additional apertures are available - to host uplighters and / or irrigation systems Bespoke adaptions available. BIM objects availableArchitectural Street Furnishings- PRODUCT

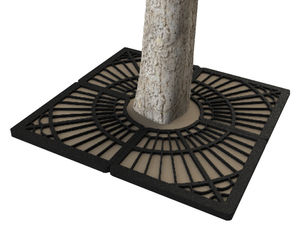

ASF 340 recycled cast iron tree grille
Manufactured in the UK from 100% recycled, engineering grade 250 cast iron. Available in all grades of recycled ductile iron. Additional apertures can be added to host irrigation units and uplighters Bespoke adaptions available. BIM objects availableArchitectural Street Furnishings- PRODUCT

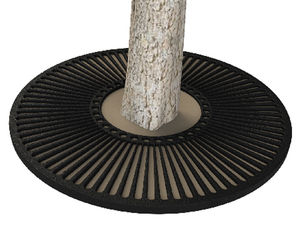

ASF 313 recycled cast iron tree grilles
ASF 313 tree grilles are manufactured in 100% recycled cast iron. 100% UK manufacture Also available in ductile iron. Finished to any colour spec. Can be adapted to have holes for uplighters, irrigation systems, etc. BIM objects availableArchitectural Street Furnishings- PRODUCT

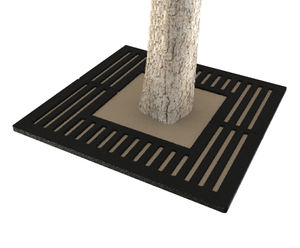

ASF 338 recycled cast iron tree grille
Manufactured in 100% recycled cast iron in ASF's own on-site, UK-based foundry. Also available in ductile iron. Apertures for irrigation systems and uplighters can be incirporated Finished to any spec. BIM objects availableArchitectural Street Furnishings- PRODUCT
RootGuard™ Plus - impermeable geotextile with HDPE root barrier
RootGuard™ Plus is an impermeable geotextile coated with an HDPE membrane that provides a high level of protection from root development. It is suitable for applications where there is no requirement for water to pass through the barrier, and offers protection to structures and landscaping including buildings, walls, paths, drainage pipes, cablesTerram- PRODUCT

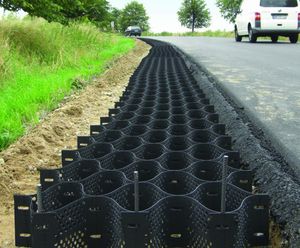

Geoweb® - HDPE geocell vegetated verge protection
Geoweb® is a cellular confinement system made from virgin High Density Polyethylene (HDPE) for soil stabilisation, load support, tree root protection, retaining walls, slopes and channels, developed by Presto Geosystems® and manufactured in the USA. Cellular structure confines infill for improved soil stability. Compatible with aggregate, concreteGreenfix Soil Stabilisation & Erosion Control- PRODUCT

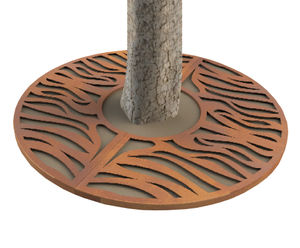

ASF Rivulet round corten steel tree grille
ASF laser-profiled corten steel tree grilles can be manufactured in a range of diameters. Tree grilles can have bespoke adaptions and have cut-outs for uplighters and tree root irrigation systems. All tree grilles are made with security fixings and can be made to be lockable if needed. All ASF tree grilles can be manufactured with matching treeArchitectural Street Furnishings- PRODUCT
Riviere Square Hole Tree Grille - cast iron tree guard
Riviere Square Hole Tree Grille is a cast iron square tree grille designed to protect tree roots in urban environments, allowing water and air to reach the soil. Customisable with irrigation holes, with a mild steel frame and security clamps as standard. Standard finish is black, with other colours available on request: cast iron square grille forBroxap- PRODUCT
