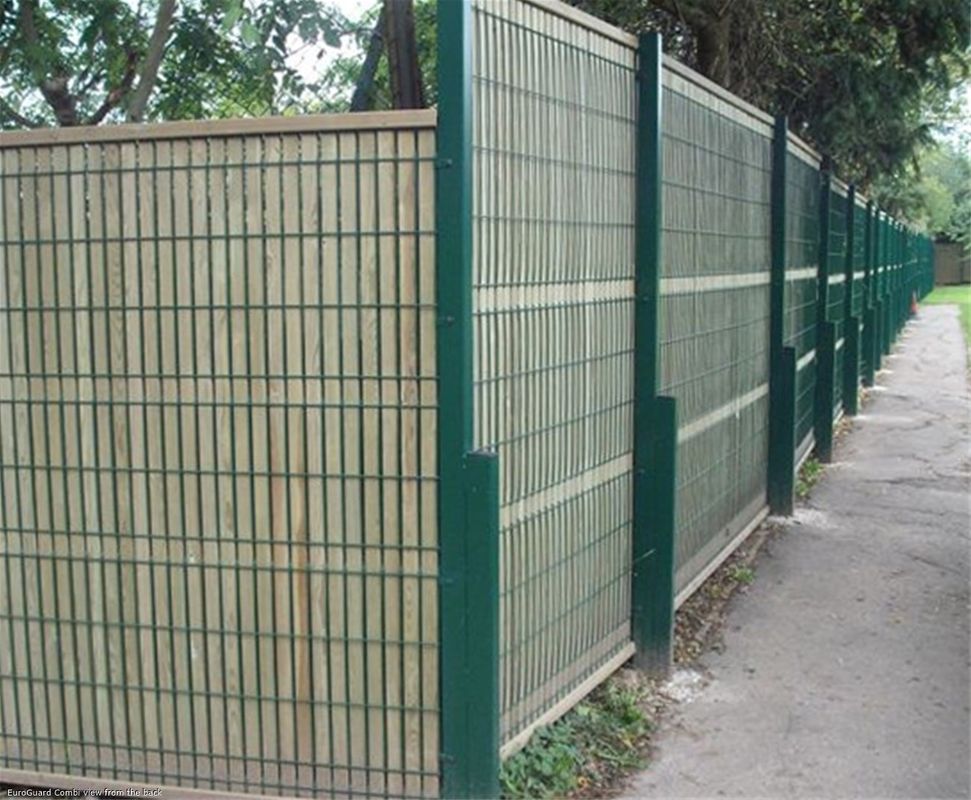

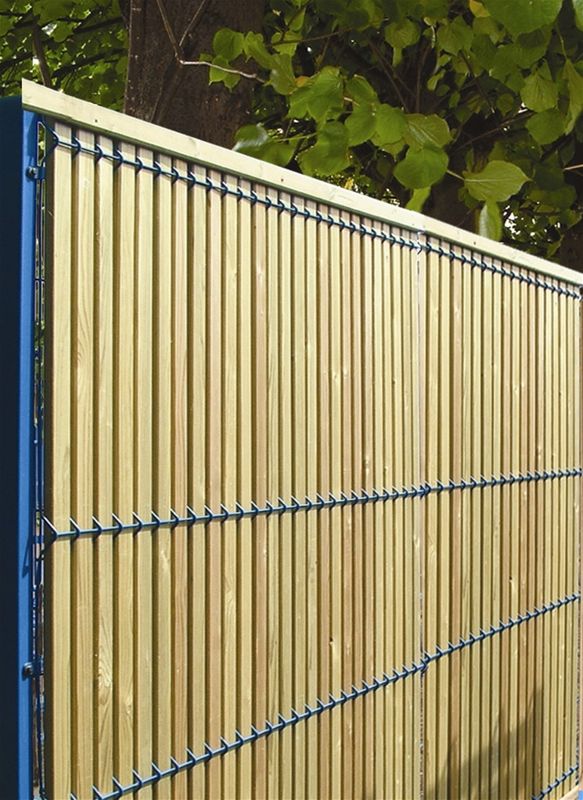

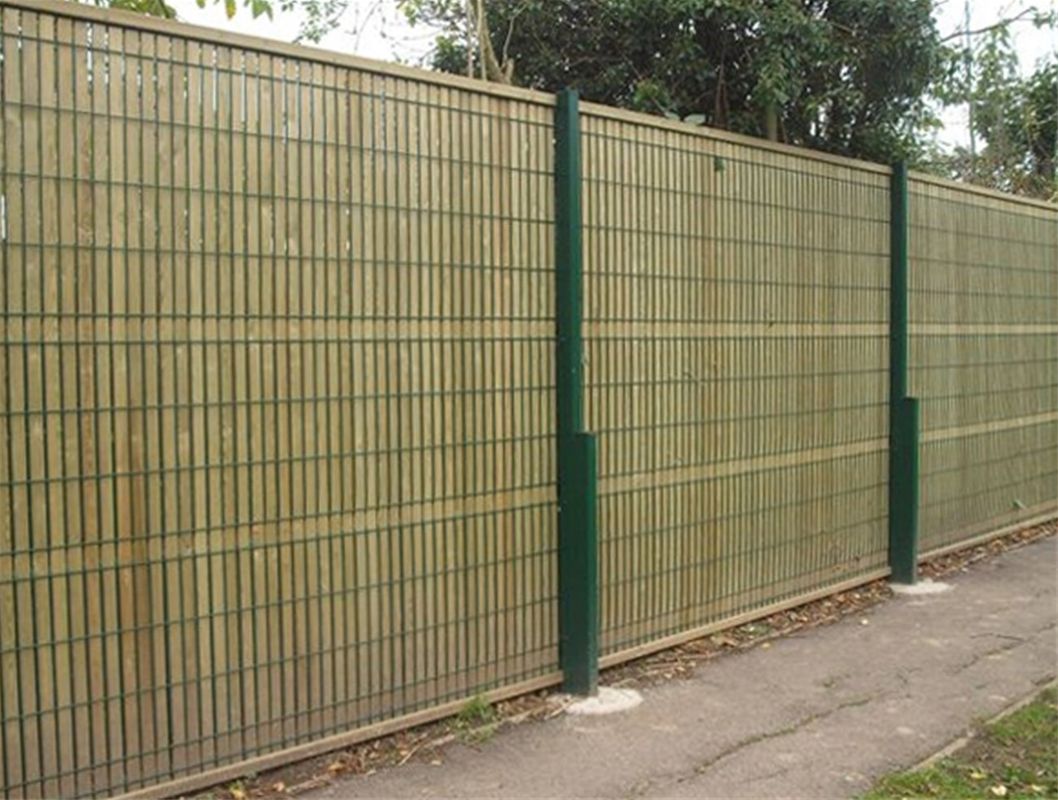

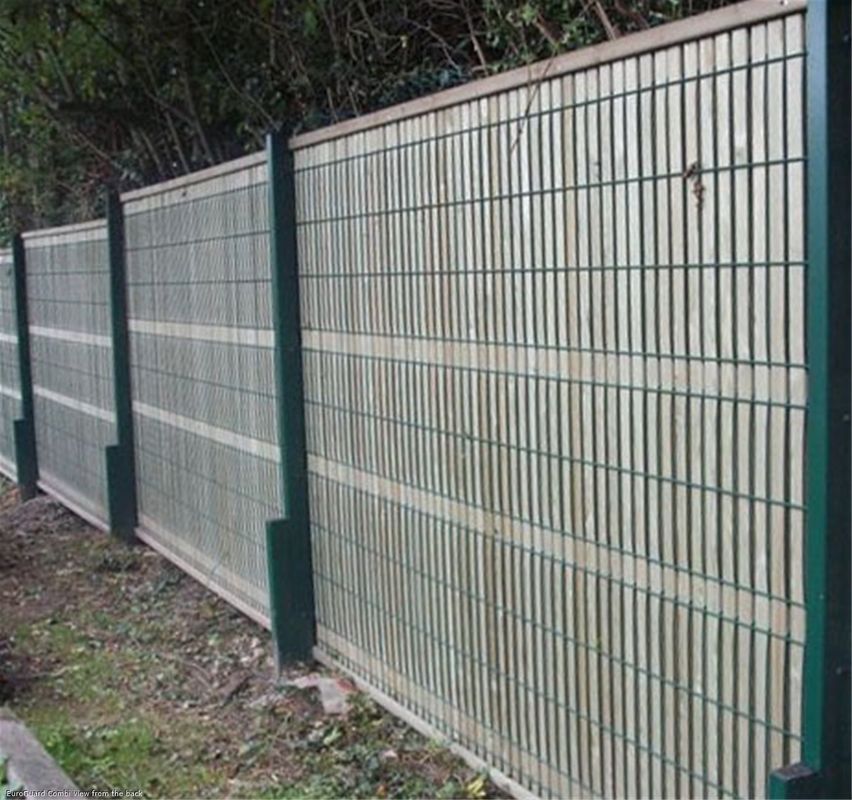

EuroGuard Combi is a welded mesh panel incorporating timber slats, combining the appearance of natural wood with the strength of steel for improved security and privacy.

The robust panels and matching gates provide the additional advantages of a flat-facing surface: no hand or foot holds for enhanced security and closely spaced slats for added privacy.

Key Features

Posts can be customised for Barbed wire / Razor wire / Rota Spike®/ Alarm-aFence®
Mesh 200 x 45mm centres with 25mm gap, 5mm wire (wire measured prior to coating)

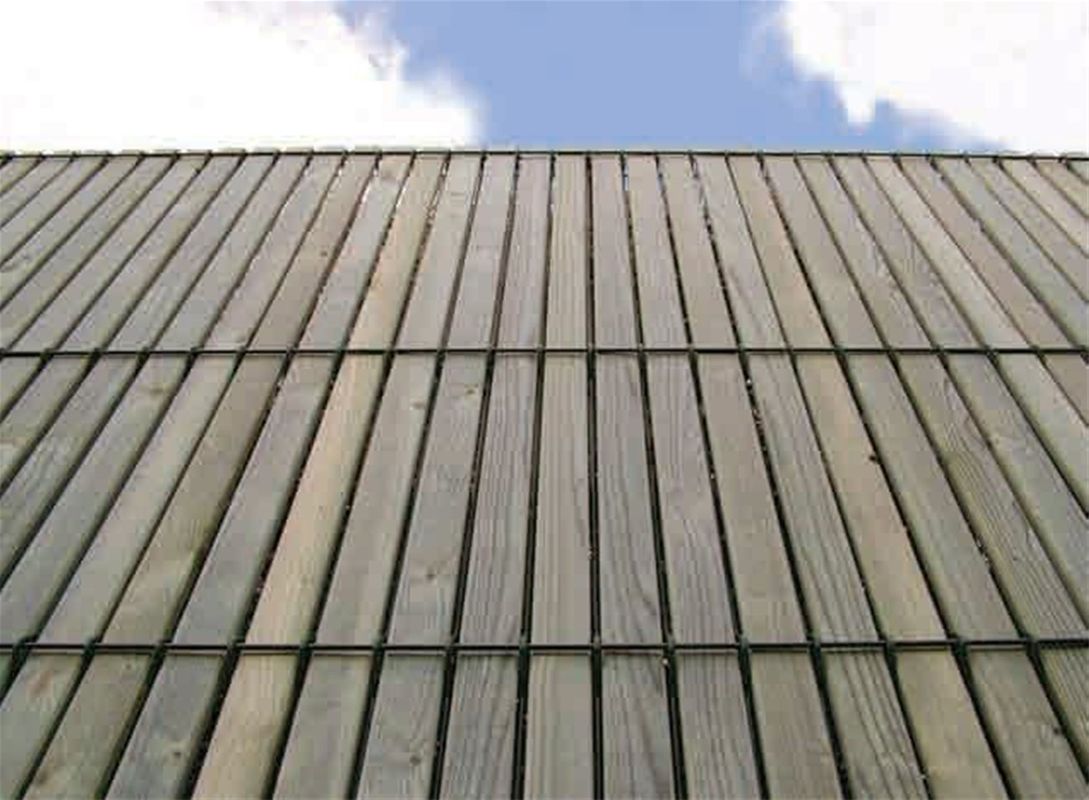

40 x 17mm kiln dried, pressure treated timber slats
Anti-climb design
V mesh design offers strength and security without an intimidating appearance
Unique vandal-proof panel to post fixings
2 - 4 reinforcement folds according to height
Can be stepped to accommodate sloping ground

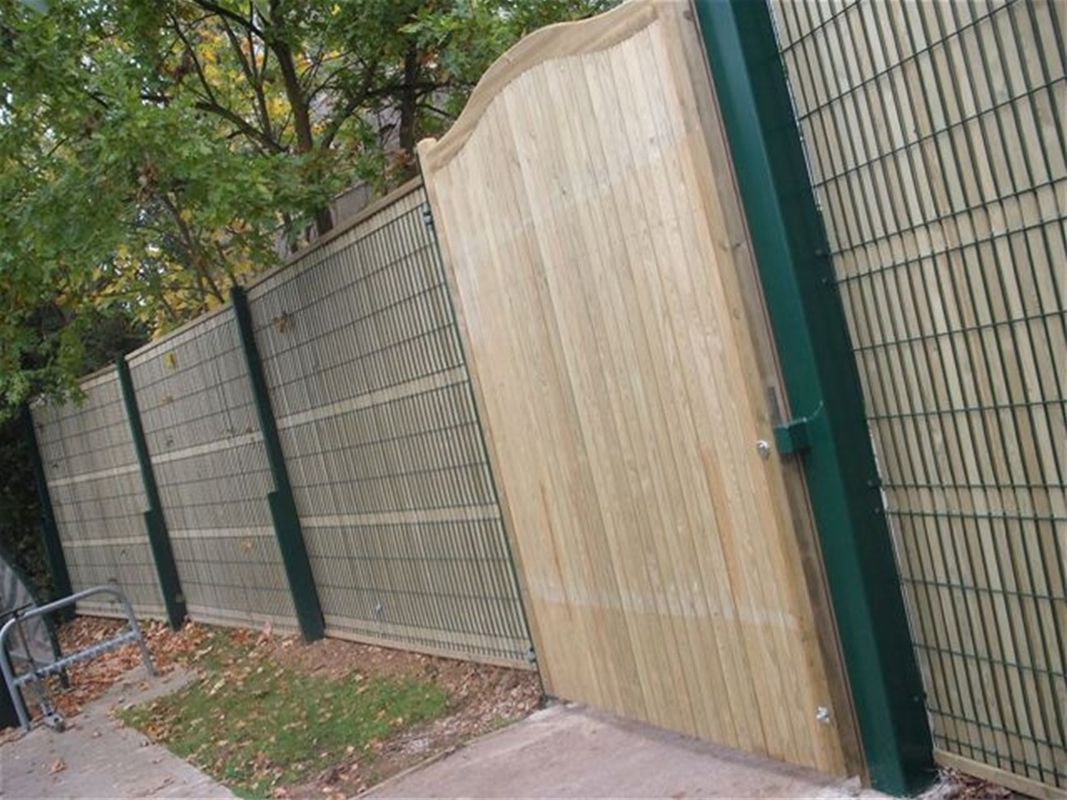

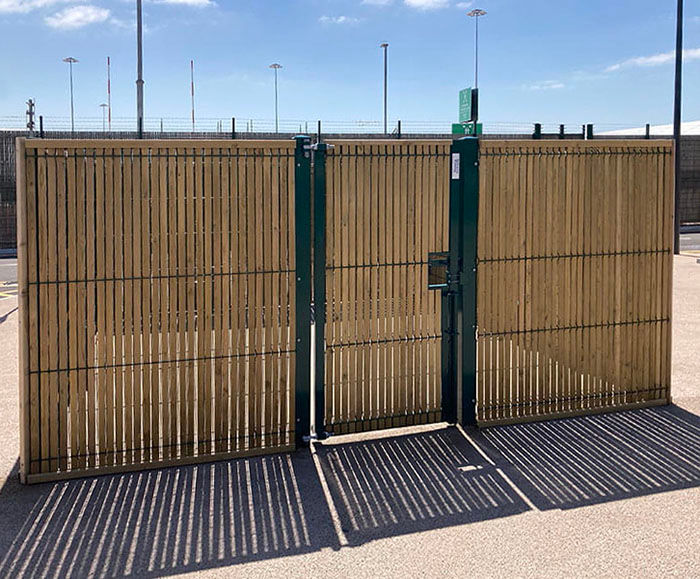

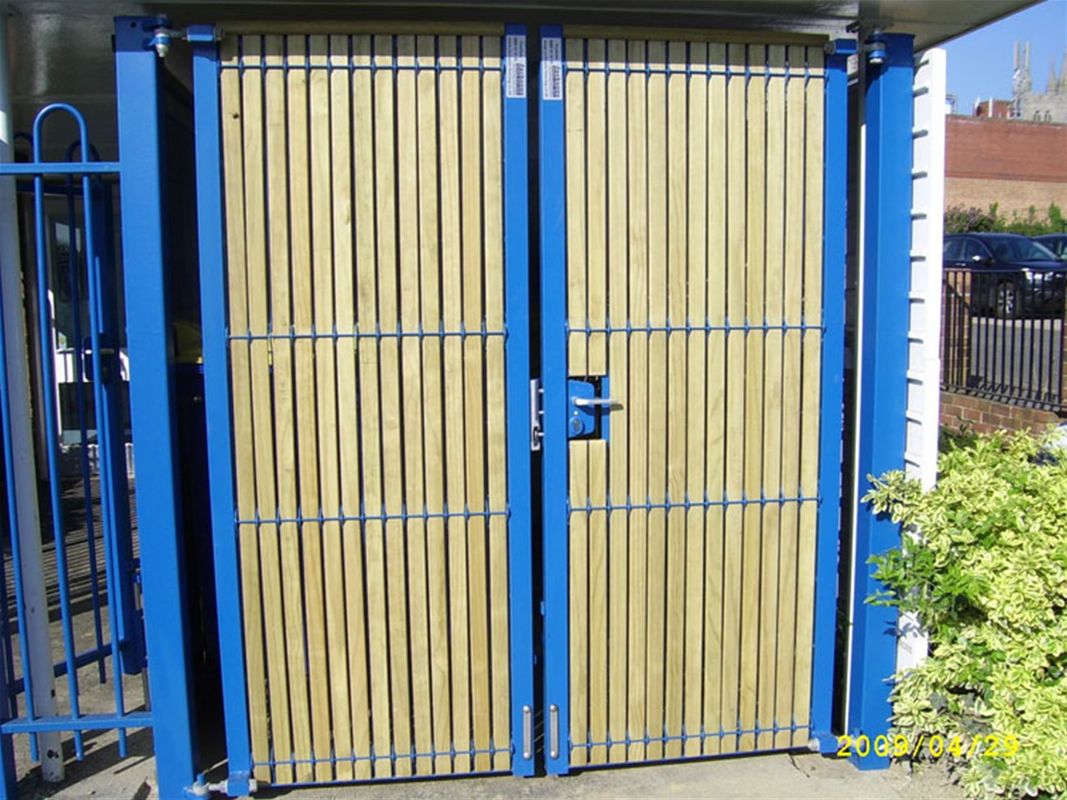

Matching single leaf and double leaf gates available

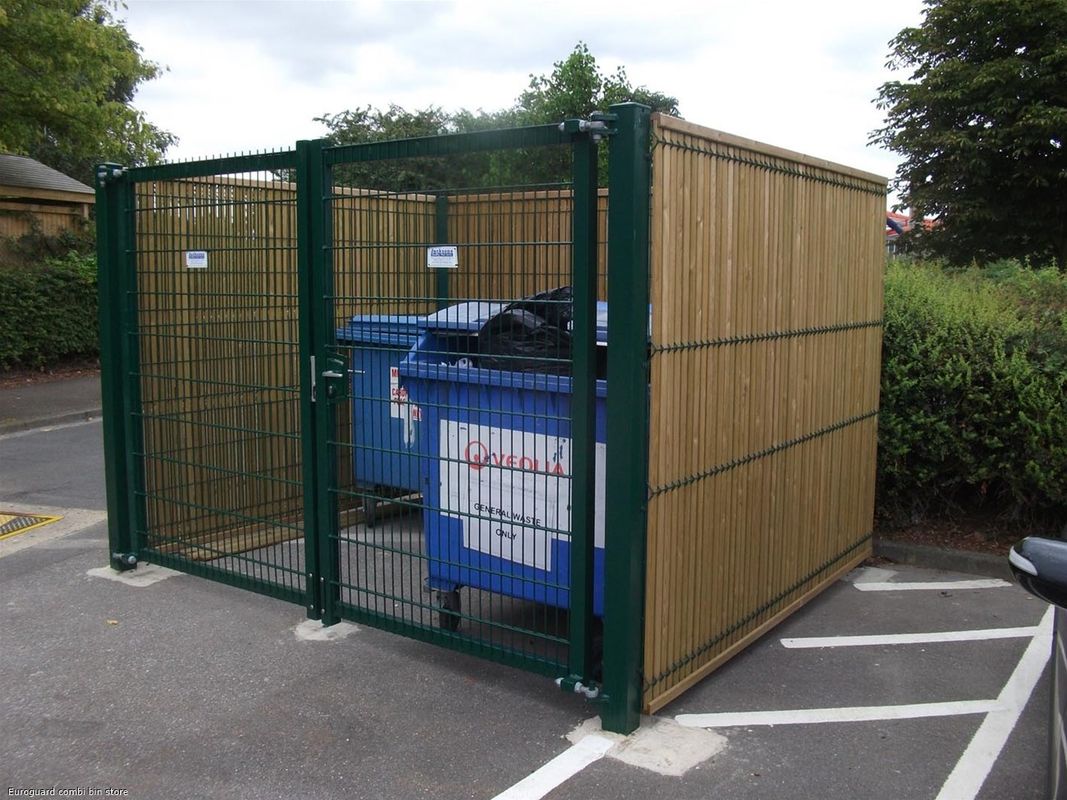

Ideal for adding privacy and creating storage compounds
25 year guarantee for both timber and steel parts

Welded mesh panels
Unique vandal-proof panel to post fixing
Mesh spacing conform to Building Regulations for anti trap
Can be stepped to accommodate sloping ground
Matching gates available
25 year service life guarantee

Finishes

Posts are galvanised to BS EN 1461 as standard
Panels are Galfan zinc alloy coated as standard
Posts and panels galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
Powder coating of panels and posts to any other BS or RAL colour to special order

EuroGuard® Combi Panel Specifications


Height (mm)	Post Centres (mm)	Timber Slats (mm)	Post Dimensions (mm)	Overall Post Length (mm)
1585	3054	40 x 17	60 x 60 (plus spur post - site dependent)	2100
1870	3054	40 x 17	80 x 60 (plus spur post*)	2500
2070	3054	40 x 17	80 x 60 (plus spur post*)	2800
2470	3054	40 x 17	80 x 60 (plus spur post*)	3300
3170	3054	40 x 17	120 x 60 (plus spur post**)	3900

*spur post size 80 x 60mm

**spur post size 120 x 60mm
