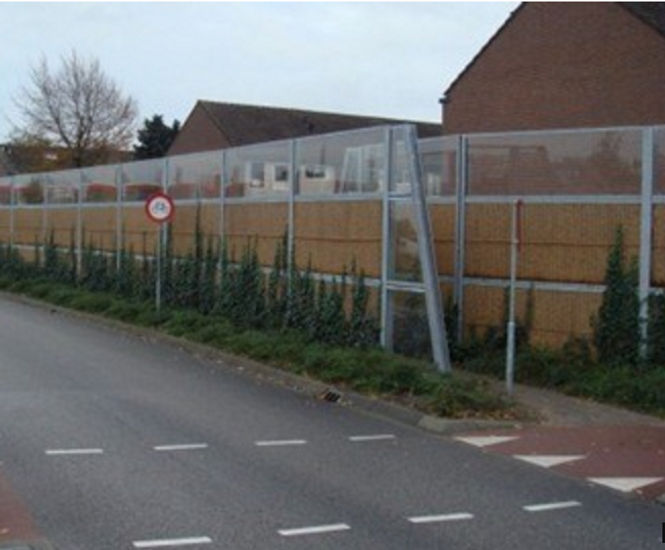

Greenscreen modular noise barriers have a high noise insulation value of 30dB Rw and a high sound absorption level of up to 10dB. Durable coconut fibres make it suitable for supporting climbing plants, as well as acoustic insulation. Within a few years, the greenscreen barriers will be completely covered with plants.

Made from galvanised steel U-channels filled with a double row of coco-fibre wrapped plastic poles.

A noise insulating plate is locked between the two rows of plastic poles and two coco-fibre taped steel poles reinforce the wrapped plastic poles.

  • High sound insulation and absorption

  • Durable & environmentally-friendly

  • Material: coconut tube on one side, sound insulating steel sheet on reverse

  • Matching Noise-Reducer noise barrier door available

  • Delivered fully custom-made (width and/or height)

  • Certification: CE

  • Guarantee: 10 years

Specifications

  • Sound insulation, single number descriptor reading - NEN-EN-ISO-717-1: Rw= 30dB(a) - NEN 1793-2, Category B3 (Dlra=27dB)

  • Sound Absorption, single number descriptor reading - NEN-EN-ISO-717-1: Dla=10dB(a) - NEN 1793-1, Category A3

  • Framework made of cold-rolled U-110-50-3

  • Profile S235

  • Galvanised EN ISO 1461 quality standard DIN 17100

  • Layer of 40mm mineral wool and a plastisol steelplate 0,75mm

Dimensions

  • Panel width, maximum: 396cm

  • Panel height: 200cm

  • Maximum height: 3x stacked panels

Installation

Livingreen can carry out design, construction, delivery and assembly, as well as planting climbing plants.
