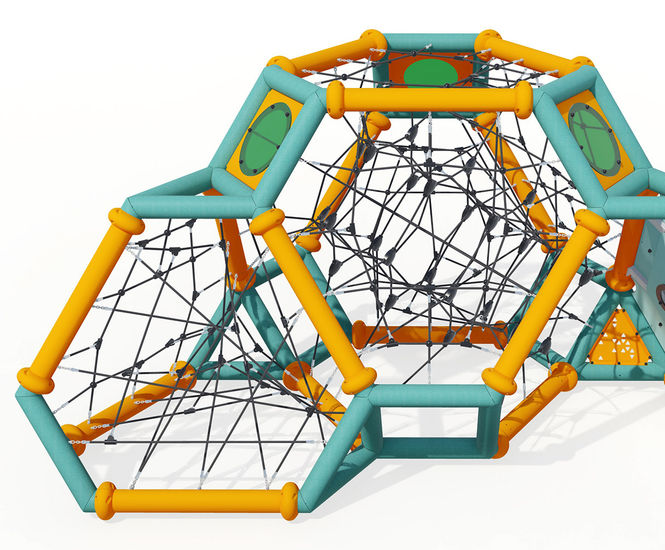

Kairn J6102-C® is a large climbing play structure for children aged 6 years and up, supporting up to 50 users. Designed for outdoor playgrounds, it measures 6.05m x 3.90m x 3.05m and has a free fall height of 3.00m. Made from galvanised steel, HPL panels, aluminium, stainless steel, and polyamide, it includes multiple climbing, crawling, and sensory play elements.

  • Climbing and play structure for schools, parks, and high-footfall public spaces

  • Suitable for children aged 6 and above

  • Weather and vandal-resistant construction including galvanised steel posts and 13mm HPL panels

  • Features rope tunnels, climbing holds, crawl spaces, PMMA portholes, and tactile and visual play panels

  • Two-part polyamide net fittings for easy maintenance and strand replacement

  • Certified to EN 1176 by TÜV independent laboratory

Applications

  • School playgrounds

  • Parks and public play areas

  • Holiday leisure parks

  • Community recreation spaces

  • Shopping centre play zones

Dimensions

Length 6.05m

Width 3.90m

Height 3.05m

Free fall height 3.00m

Materials

  • 168.3mm diameter painted galvanised steel posts

  • Regenerated PA6 polyamide fixing collars

  • 13mm thick HPL coloured panels — weather and vandal resistant

  • 3mm thick painted aluminium closing elements

  • 16mm diameter galvanised steel cable ropes with polyester cover

  • Polyamide net fittings — two-part design for easy individual strand maintenance

  • Stainless steel chains

  • 8mm thick methacrylate (PMMA) portholes

  • Play panel comprising polycarbonate mirror, ribbed aluminium sheet, and grained polyethylene

  • Anodised aluminium tubes - rust-proof and climate resistant

  • Polypropylene climbing holds -non-toxic, UV and shock resistant

  • Stainless or plated steel fixings with anti-vandalism polyamide caps

Installation

Requires 2 installers

Accreditations

Certified to EN 1176 by TÜV independent laboratory
