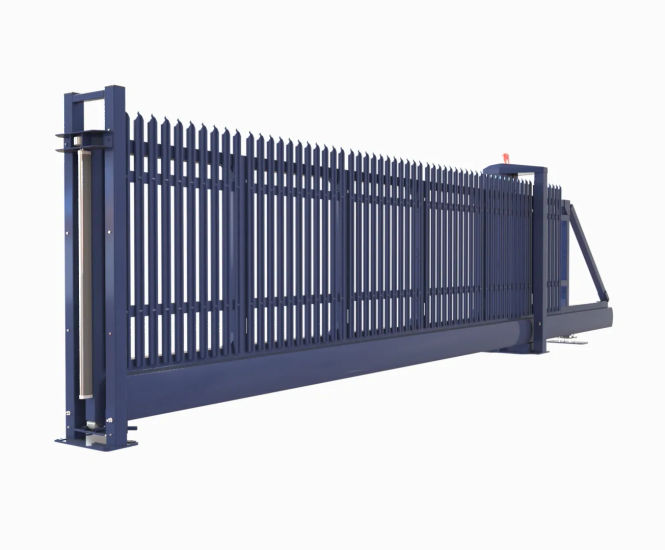

The SlideGuard Pro automatic cantilever sliding gate is accredited by LPS 1175: Issue 8 and will meet the security accreditation of the chosen infill fence, including LPS 1175 A1, B3 and C1.

With a range of anti-cut and anti-tampering features, each variant has been carefully designed to resist attack to the desired threat level.

Two versions are available to seamlessly match any Barkers' LPS 1175 certified fence:

  • SlideGuard Pro SL1 with SecureGuard SR1 or Twinguard SL1 infill meets LPS 1175 A1 (previously SR1)

  • SlideGuard Pro SL2 with StronGuard SL2 or SecureGuard SL2X infill meets LPS 1175B3 (previously SR2).

Key features

  • Versions accredited to LPS1175 A1, B3 and C1

  • Motor and gearbox ensure smooth and reliable operation

  • 100% duty rated

  • Dual-height photocells, CAT 3 safety edges and an emergency stop button are fitted as standard

  • Galvanised mild steel for long-lasting performance

  • Pre-assembled to latest safety standards

Suitability

  • Industrial

  • Data centres

  • Utilities

  • Vaccine and biochemical facilities

  • Military

  • Critical infrastructure

Specifications

Material
Mild steel, hot dip galvanised and powder coated

Power 240 Volt single-phase 50Hz, recommended with either a 10A MCB or a 300mA RCD Type C breaker.

Standard foundations (mm)
Catch post: 600 x 500 x 600
Rear support roller: 400-700 x 350 x 475
Drive Tower Plinth: 600 x 1500-4500 x 955

May vary depending on gate size, infill and ground conditions.

Includes
Dual height photocells,
CAT 3 safety edges
Emergency stop button

Access control
Passive system essential

Operation

Operated and controlled by a motor and gearbox for smooth and consistent motion, slowing down to the end of the operation in each direction for a soft close.

Safety

As a safety precaution, dual height photocells, CAT 3 safety edges and an emergency stop button are fitted as standard. Together, these safety devices reduce the risk of entrapments, crushing and shearing, ensuring compliance with British Standards. In the event of a power cut or fault, the gate can be manually operated.

Delivery and installation

SlideGuard Pro is delivered assembled on a hi-ab ready for installation.

O&M manual available on request.
