The Wardale® Two Tier cycle shelter uses the best selling Wardale design while utilising the space saving Easi-Riser Two Tier Cycle Parking System (sold separately). Available with Fully Enclosed or Open Extension End frames, The Wardale Two Tier Shelter provides the most protection from the elements of all of our two tier shelters.

The Wardale Two Tier cycle shelter can also be fitted with Swinging gates with a range of locking mechanisms available to create a fully lockable and secure shelter.

The versatility of the Wardale Two Tier cycle shelter means that the shelter can be retro-fitted with extensions at a later date pushing the parking capacity upwards whilst keeping installation costs low.

Features

Robust Modular Construction Featuring Load Bearing Purlins
Welded End Frames and Purlin Section Made From Heavy-Duty Box Section Assembled with Anti-Tamper High Strength Bolts
Anti-Climb End Frames
Adjustable Baseplates
Bottom Purlin Provides Anti-Crawl Bar on Level Surface
Hot Dipped Galvanized to BS EN ISO 1461
4mm Clear View PETg UV Roof and Side Cladding
Can contribute towards gaining ENE8 credits when used in the appropriate situation, under the Code for Sustainable Homes.
BREEAM and Code for Sustainable Homes Compliant.

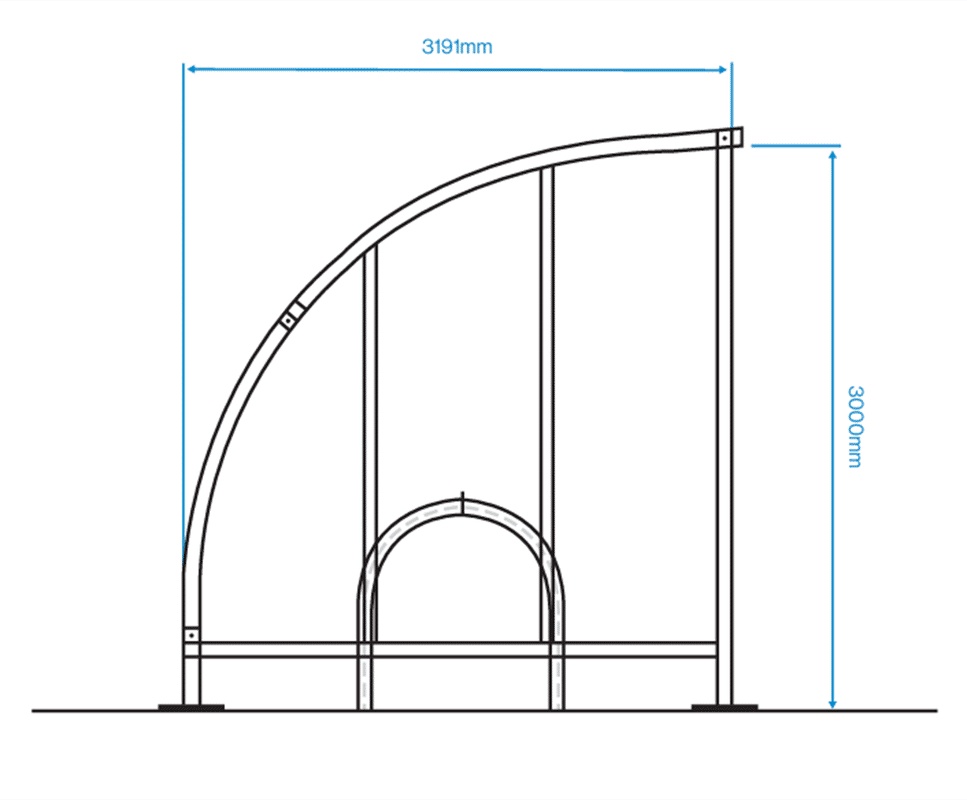

Standard Unit Dimensions

Length: 4100mm
Width: 3191mm
Height: 3000mm

Capacities

3600mm - up to 16 Cycles
4100mm - up to 20 Cycles
5000mm - up to 24 Cycles

Options

Steel Profile, Trapezoidal Roof Cladding
Open or Enclosed Extension End Frames
Extended Adjustable Baseplates for Submerged Fixing
Swinging Security Gates
Digital Mechanical or Keyed Locks
Further Anti Crawl Bars can be fitted Dependant on Surface Level
Powder Coating to a wide range of colours
LED or solar lighting
Multiple Banks to Increase Cycle Capacity
Full Installation Service

Materials Used

Framework - Mild Steel
Cladding - 4mm PETg UV
Fasteners - Zinc Plated
Cover Strips - Pre-galvanized steel flat

Framework Colours / Finishes

Galvanised Only
RAL 9006 - White Aluminium
RAL 7016 - Anthracite Grey
BS 4800 10 A 07 - Nimbus Grey
RAL 3020 - Traffic Red
RAL 9005 - Jet Black
BS 4800 14 C 39 - Holly Green
RAL 1023 - Traffic Yellow
BS 4800 00 A 05 - Goose Grey
RAL 5015 - Mid Blue
RAL 5013 - Dark Blue
RAL 9016 - Traffic White
