Level invert on headwalls

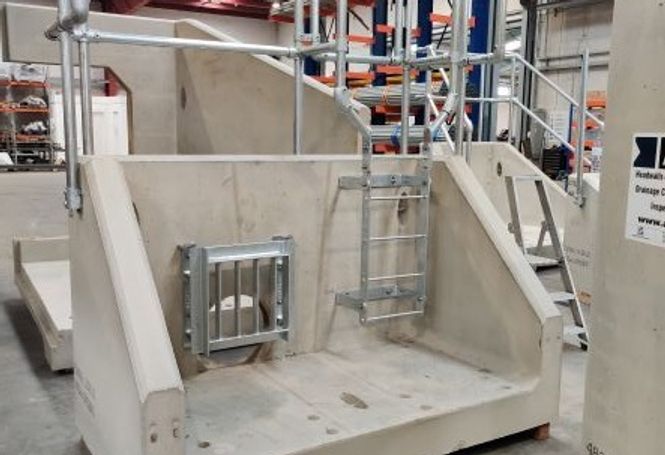

The photo above is one of our smaller RSFA headwalls (RSFA18B 01 1150) showing a great example of when a customer requires the pipe ID at level invert. We cast in a slightly larger opening than the OD of the pipe to make installation easier on site, once the pipe is in the correct position site will fill the void around the pipe with high strength
Click for full image
The photo above is one of our smaller RSFA headwalls (RSFA18B 01 1150) showing a great example of when a customer requires the pipe ID at level invert. We cast in a slightly larger opening than the OD of the pipe to make installation easier on site, once the pipe is in the correct position site will fill the void around the pipe with high strength non shrink grout. The SFA1 Outfall Safety Grille is fitted to the headwall 150mm up from the spillway as standard when the pipe ID is level with the spillway. For more information on our precast concrete headwalls VISIT SUPPLIER WEBSITE below, call our sales team on 01603 488700 or SEND MESSAGE opposite.
