Sector Education
Project type New build
Services provided Design
Product / system manufacture
Year completed 2020
Project location London
Client Imperial College
Consultant GROSS.MAX. landscape architects
Contractor Maylim Limited
Products used 12 x conical steel planters



Context

Imperial College West is a new innovative and integrated campus located at the centre of the major White City regeneration masterplan. IOTA’s planters feature in the external works package for the area surrounding one of the campus’ new flagship buildings - the Michael Uren Biomedical Engineering Research Hub.

Requirement

IOTA was commissioned to supply statement steel planters for Imperial College West – a new innovative and integrated campus located at the centre of the major White City regeneration masterplan.

Solution

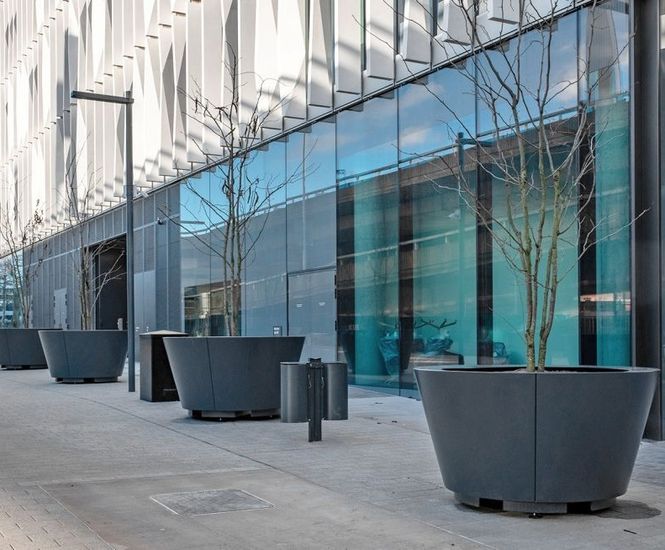

A total of 12 large conical planters were supplied, each measuring 2100mm diameter and 1150mm high, with an unusual extra-wide feature rim. The planters were constructed from 5.0mm mild steel, zinc-primed, and polyester powder coated to RAL 7016 (Anthracite Grey). The planters were also designed to be movable by fork lift, via stainless steel-lined slots in the base. Ultra heavy-duty adjustable feet were also included in the design, each with SWL 1000kg.


Context

Imperial College West is a new innovative and integrated campus located at the centre of the major White City regeneration masterplan. IOTA’s planters feature in the external works package for the area surrounding one of the campus’ new flagship buildings - the Michael Uren Biomedical Engineering Research Hub.

Requirement

IOTA was commissioned to supply statement steel planters for Imperial College West – a new innovative and integrated campus located at the centre of the major White City regeneration masterplan.

Solution

A total of 12 large conical planters were supplied, each measuring 2100mm diameter and 1150mm high, with an unusual extra-wide feature rim. The planters were constructed from 5.0mm mild steel, zinc-primed, and polyester powder coated to RAL 7016 (Anthracite Grey). The planters were also designed to be movable by fork lift, via stainless steel-lined slots in the base. Ultra heavy-duty adjustable feet were also included in the design, each with SWL 1000kg.
