Sector Transport infrastructure
Project type New build
Services provided Product / system manufacture
Product / system supply
Project location Scotland
Client ScotRail
Consultant Architect: Nicoll Russell Studios
Contractor Broxap
Products used Italia-80



Context

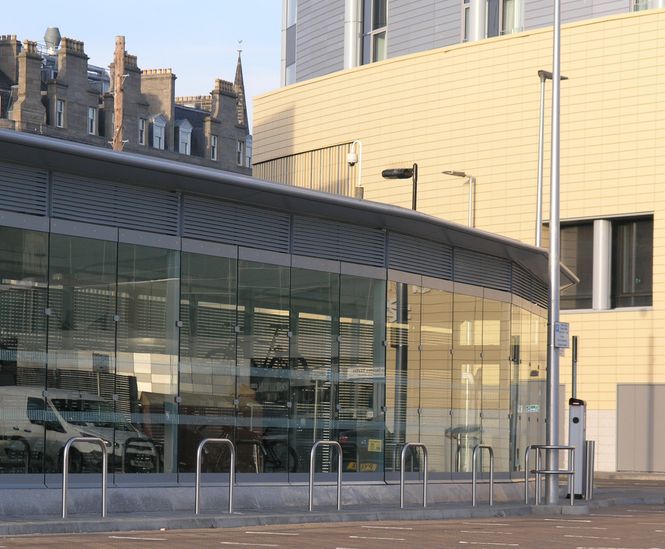

A stand-alone cycle hub with two-tier parking for 120 bicycles now provides high-quality, safe and secure bike storage at Dundee’s new railway station. It is hoped that it will improve integration between cycling and rail travel, promote sustainable journey choices and encourage more active and healthy lifestyles.

Project architect, Nicoll Russell Studios, wanted to create something that wasn’t a ‘box shape’ structure.

Product supplied

The architect worked with Broxap who engineered a solution that incorporated a rear section of Lang+Fulton’s Italia-80 louvred panels, based around their previous collaboration for bet365. Italia-80 louvres were also introduced at the top and around the sides of the glazing allowing a good air flow through the hub. The panels were hot-dip galvanised and polyester powder-coated to provide a smart, long-lasting finish in a location with close proximity to the sea.

Total integration of the project was achieved by matching the louvres on the bike store with the Italia-80 fencing on the opposite side of the car park.


Context

A stand-alone cycle hub with two-tier parking for 120 bicycles now provides high-quality, safe and secure bike storage at Dundee’s new railway station. It is hoped that it will improve integration between cycling and rail travel, promote sustainable journey choices and encourage more active and healthy lifestyles.

Project architect, Nicoll Russell Studios, wanted to create something that wasn’t a ‘box shape’ structure.

Product supplied

The architect worked with Broxap who engineered a solution that incorporated a rear section of Lang+Fulton’s Italia-80 louvred panels, based around their previous collaboration for bet365. Italia-80 louvres were also introduced at the top and around the sides of the glazing allowing a good air flow through the hub. The panels were hot-dip galvanised and polyester powder-coated to provide a smart, long-lasting finish in a location with close proximity to the sea.

Total integration of the project was achieved by matching the louvres on the bike store with the Italia-80 fencing on the opposite side of the car park.
