Precast concrete headwalls for new relief road

Althon supplied over 20 headwalls to the Beccles Southern Relief road which stretches from London Road (A145) to Ellough Road (C969). The road was built by...

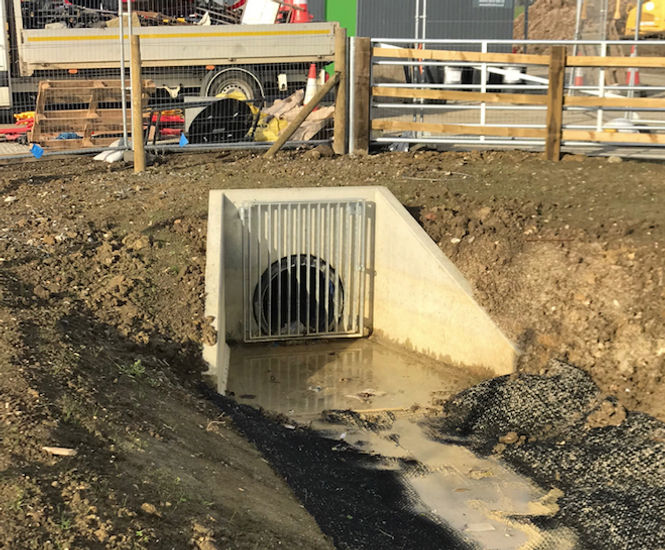

  H10CA headwall and galvanised steel close coupled grate
Click for full image

  • H10CA headwall and galvanised steel close coupled grate
  • H3C concrete headwalls for 150mm dia pipe
  • Beccles Southern Relief Road
H10CA headwall and galvanised steel close coupled grate
1/12

Sector Transport infrastructure
Year completed 2018
Contractor Jacksons Civil Engineering
Products used Precast concrete headwalls



Context

Althon supplied over 20 headwalls to the Beccles Southern Relief road which stretches from London Road (A145) to Ellough Road (C969). The road was built by Jacksons Civil Engineering and will lower the impact of HGVs in Beccles, providing them with an alternate route around the town.

Products supplied

Althon supplied precast concrete headwalls to the new relief road. These included smaller H3C concrete headwalls for 150mm dia pipes to H10CA headwalls to suit 600mm dia pipes, factory-fitted with a galvanised steel close coupled grating.


Context

Althon supplied over 20 headwalls to the Beccles Southern Relief road which stretches from London Road (A145) to Ellough Road (C969). The road was built by Jacksons Civil Engineering and will lower the impact of HGVs in Beccles, providing them with an alternate route around the town.

Products supplied

Althon supplied precast concrete headwalls to the new relief road. These included smaller H3C concrete headwalls for 150mm dia pipes to H10CA headwalls to suit 600mm dia pipes, factory-fitted with a galvanised steel close coupled grating.
