Sector Transport infrastructure
Project type New build
Services provided Design
Product / system manufacture
Installation
Project location East Midlands
Client Bedford Borough Council
Consultant J B Leadbitter / Bouygues
Products used Tied arch vierendeel truss bridge



Context

CTS Bridges provided the Riverside North bridge for Bedford's town centre as part of a major town centre regeneration project.

Work undertaken

CTS's design team was involved from an early stage, working with Leadbitter-Bouygues to develop a viable scheme that met both the aspirations of the developer and the requirements of Bedford Borough Council who would be required to adopt the scheme once complete.

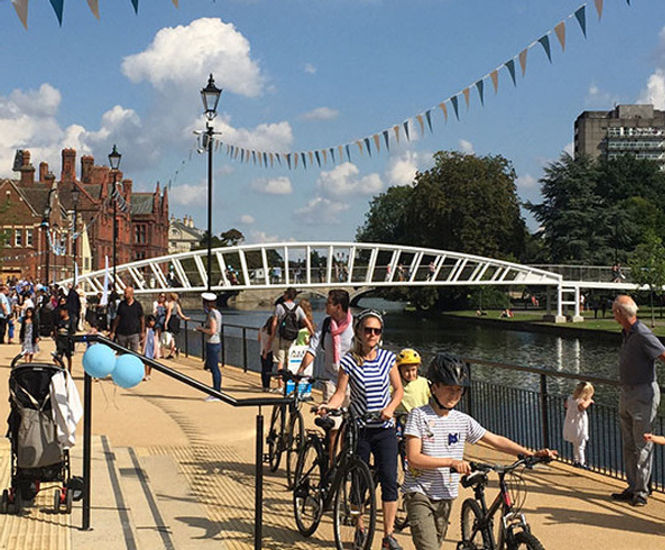

A 4m-wide x 45m-long steel tied arch Vierendeel truss bridge with stainless steel tension wire parapet was installed.

The 4m-wide main deck was specified by the local authority to accommodate shared pedestrian and cycle use at a busy town centre location. Approach ramps on the south bank bring users up to the bridge from floodplain level and ensure that the bridge is sufficiently elevated to allow river traffic and towpath users to pass underneath.

The constrained site dictated the programme for the bridge which had to be installed before the land could be used for development.

CTS delivered the main structure to site as 3 units for welding together and then lifted into position with an impressive 750t crane.


Context

CTS Bridges provided the Riverside North bridge for Bedford's town centre as part of a major town centre regeneration project.

Work undertaken

CTS's design team was involved from an early stage, working with Leadbitter-Bouygues to develop a viable scheme that met both the aspirations of the developer and the requirements of Bedford Borough Council who would be required to adopt the scheme once complete.

A 4m-wide x 45m-long steel tied arch Vierendeel truss bridge with stainless steel tension wire parapet was installed.

The 4m-wide main deck was specified by the local authority to accommodate shared pedestrian and cycle use at a busy town centre location. Approach ramps on the south bank bring users up to the bridge from floodplain level and ensure that the bridge is sufficiently elevated to allow river traffic and towpath users to pass underneath.

The constrained site dictated the programme for the bridge which had to be installed before the land could be used for development.

CTS delivered the main structure to site as 3 units for welding together and then lifted into position with an impressive 750t crane.
