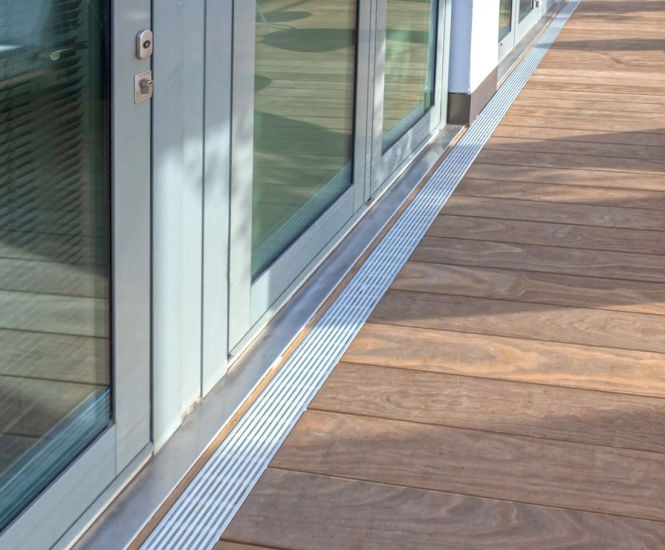

ALUgrate is a specialised edging product engineered to direct rainwater down on to weatherproofing or insulation layer, and away from façade, protecting glazing, masonry and other materials from splash-back.

Made from aluminium, ALUgrate can be used on all external raised floor projects,including those that require maximum fire safety.

CHARACTERISTICS:

Length: 4000mm, Width: 140mm, Height: 21mm, Weight: 6.6kg per length

Fire-rating: Class A1

MATERIAL:

Aluminium

Designed and Manufactured in Europe

APPLICATIONS:

ALUgrate can be used for a wide range of outdoor applications and finishes, including: 20mm external porcelain and timber decking. The grille connects to rail systems such as ALUrail, A-PED-JOISTS or timber joists, either directly or through using a connector.

Key features

  • Designed to be incorporated into the Buzon pedestal product ranges

  • Easily removed for access to gutters and / or cleaning

  • Can be screwed to joists, or clip-fixed as required

  • Perfect where low voids are required

  • Offers a flush install to other substrates

  • Creates a barrier-free, wheelchair-friendly access

  • 4000 x 140 x 21mm
