RootBridge provides parking solution near urban trees

A car parking solution was needed for an urban area with an existing tree stock. This was to ensure adequate space for nearby café facilities, play areas...

Click for full image

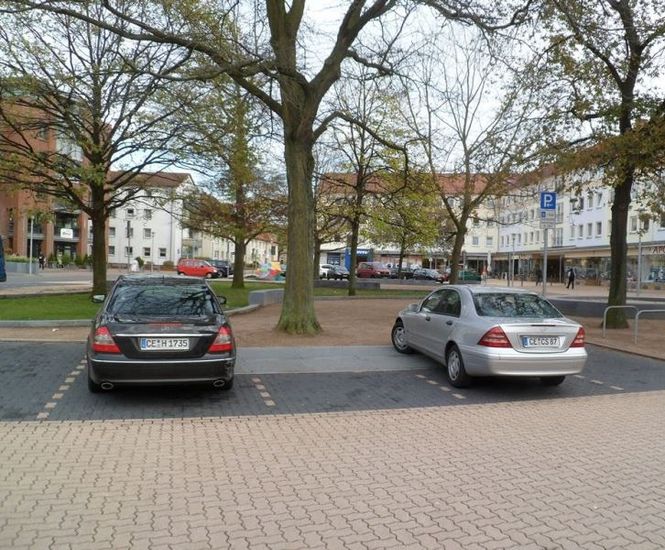

Root bridge can provide additional parking space

1/12

Sector	Public realm
Project type	Refurbishment
Services provided	Product / system manufacture Product / system supply

Challenge

A car parking solution was needed for an urban area with an existing tree stock. This was to ensure adequate space for nearby café facilities, play areas for children, accessibility and seating, as well as space for additional trees.

Solution

Green Grid's RootBridge root protection system was chosen for this project. The RootBridge, which has a 7.5cm-high structure, can be installed over existing roots and can support loads up to 15kN. The entire structure is placed on screw foundations that ensure no damage in the root zone for the required load.
