Sector Transport infrastructure
Project type Refurbishment
Services provided Product / system manufacture
Year completed 2015
Project location London



ACO Water Management’s drainage solutions have been installed throughout the redevelopment of King’s Cross. As well as meeting site-specific requirements, aesthetically these installations are a great example of urban surface design.

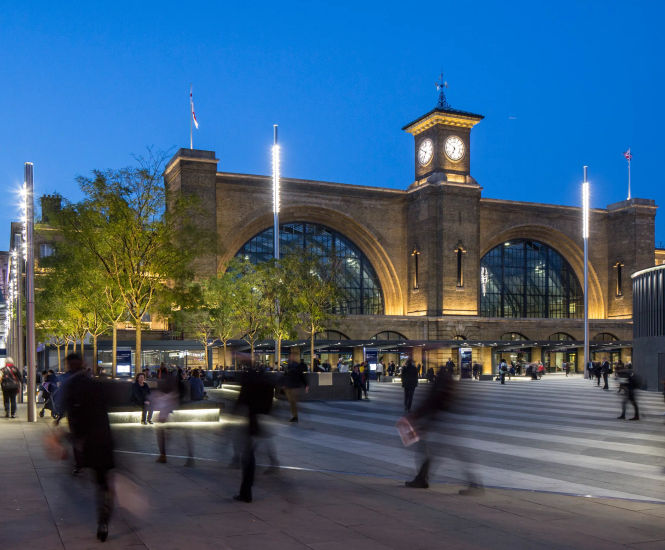

Thousands of passengers use the 7,000m2 King’s Cross Square outside King’s Cross Station every day, which sits just 500mm above the roof of the London Underground ticket hall. The square was designed to be as flat as possible, with just a 500-600mm fall, and this presented a real challenge when it came to designing the correct drainage solution.

With gulleys rejected due to the increase in variation of gradients required and the hazard they present to heeled shoes, a much more unobtrusive solution in ACO’s MultiDrain channels was chosen for the perimeter of the square, to prevent water run-off reaching the public throughway. These also incorporated ACO’s Heelsafe stainless steel grates for added safety.

Within the square itself, MultiDrain was again used, this time featuring Twin Offset Brickslots, channelling the water into a network of underground pipes and chambers that store the water before it is discharged into the Fleet Street sewer. The channel and ACO Brickslot grating together provide an unobtrusive continuous slot drainage system with high hydraulic efficiency for fast removal of surface water. From a design perspective, this solution also gives a great surface finish particularly with the grating being in stainless steel.

The drainage design for the square was also presented with the issue that the surface levels fall in the opposite direction to the outlet. Through collaboration between the designer and ACO, a solution was created where the upstand of the slot had a gradual increase in height per unit to ensure the drainage system runs level with the surface; each TwinSlot Brickslot was individual in design.

Nearby, Granary Square, with in the 67 acre generation site was another majorproject, which needed a discreet and effective water management solution that could meet the aesthetic and hydraulic requirements of the site. The square features a four large surface fountain in the centre, with 1080 individual jets of water.

Again, with designing on the surface being key, ACO’s solution was its MultiDrain Brickslot channel drainage system, a visually subtle solution that provided high hydraulic efficiency and enabled rapid removal of the surface water. The Brickslot grating system is also completely secure and is not vulnerable to vandalism or coming loose, making it ideal for use in a communal area. Bespoke to the area, ACO designed a Brickslot grating with a 40mm profile for installation in the square, rather than the standard 105mm, so that the stone paving could cover the drainage slot to achieve the desired aesthetics.

ACO Water Management’s MultiDrain channels were also used at Pancras Square and Cubitt Square as part of the redevelopment of the King’s Cross’ area. Water is a key feature of Pancras Square, which has been called the ‘gateway to King’s Cross’ and was inspired by the design of a continental town square. Cubitt Square, the newsly opened public space, was designed with the community in mind, holding various events, from markets to outdoor cinemas.


ACO Water Management’s drainage solutions have been installed throughout the redevelopment of King’s Cross. As well as meeting site-specific requirements, aesthetically these installations are a great example of urban surface design.

Thousands of passengers use the 7,000m2 King’s Cross Square outside King’s Cross Station every day, which sits just 500mm above the roof of the London Underground ticket hall. The square was designed to be as flat as possible, with just a 500-600mm fall, and this presented a real challenge when it came to designing the correct drainage solution.

With gulleys rejected due to the increase in variation of gradients required and the hazard they present to heeled shoes, a much more unobtrusive solution in ACO’s MultiDrain channels was chosen for the perimeter of the square, to prevent water run-off reaching the public throughway. These also incorporated ACO’s Heelsafe stainless steel grates for added safety.

Within the square itself, MultiDrain was again used, this time featuring Twin Offset Brickslots, channelling the water into a network of underground pipes and chambers that store the water before it is discharged into the Fleet Street sewer. The channel and ACO Brickslot grating together provide an unobtrusive continuous slot drainage system with high hydraulic efficiency for fast removal of surface water. From a design perspective, this solution also gives a great surface finish particularly with the grating being in stainless steel.

The drainage design for the square was also presented with the issue that the surface levels fall in the opposite direction to the outlet. Through collaboration between the designer and ACO, a solution was created where the upstand of the slot had a gradual increase in height per unit to ensure the drainage system runs level with the surface; each TwinSlot Brickslot was individual in design.

Nearby, Granary Square, with in the 67 acre generation site was another majorproject, which needed a discreet and effective water management solution that could meet the aesthetic and hydraulic requirements of the site. The square features a four large surface fountain in the centre, with 1080 individual jets of water.

Again, with designing on the surface being key, ACO’s solution was its MultiDrain Brickslot channel drainage system, a visually subtle solution that provided high hydraulic efficiency and enabled rapid removal of the surface water. The Brickslot grating system is also completely secure and is not vulnerable to vandalism or coming loose, making it ideal for use in a communal area. Bespoke to the area, ACO designed a Brickslot grating with a 40mm profile for installation in the square, rather than the standard 105mm, so that the stone paving could cover the drainage slot to achieve the desired aesthetics.

ACO Water Management’s MultiDrain channels were also used at Pancras Square and Cubitt Square as part of the redevelopment of the King’s Cross’ area. Water is a key feature of Pancras Square, which has been called the ‘gateway to King’s Cross’ and was inspired by the design of a continental town square. Cubitt Square, the newsly opened public space, was designed with the community in mind, holding various events, from markets to outdoor cinemas.
