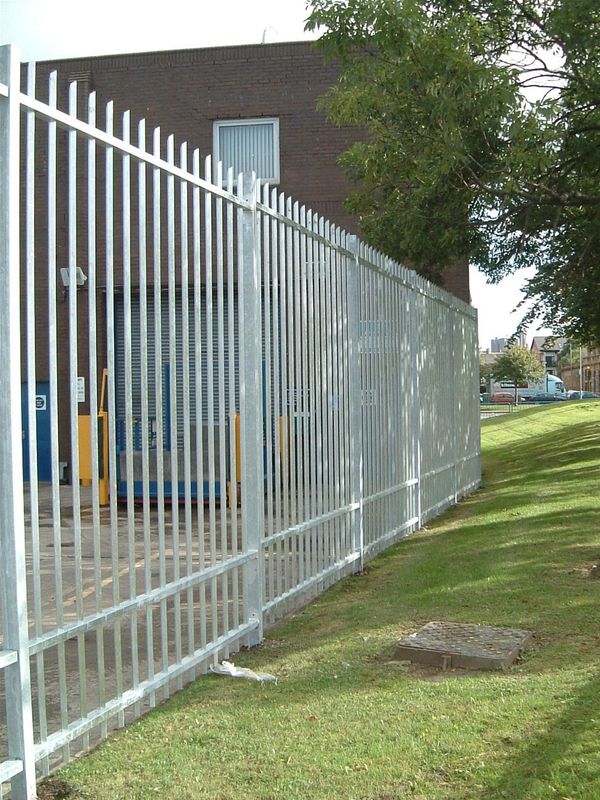

Barbican square pale security fencing features welded pale-through-rail construction which means there are no rivets to be forced or palings to be removed.

The horizontal rails are sleeved onto the upright posts with concealed fixings to provide a seamless design that is stylish and strong.

Features and benefits

Anti-climb design

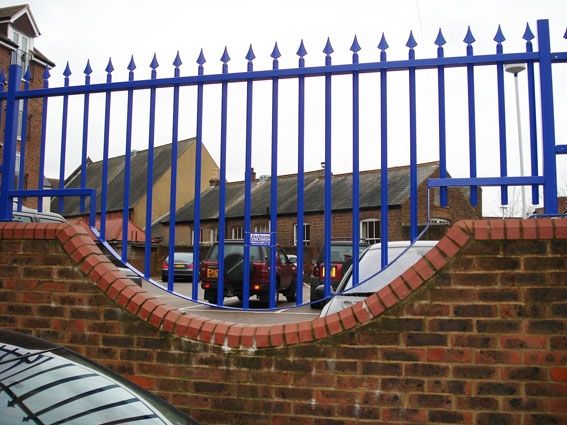

Mounting options include on wall, inset and free standing
Panels can be made to accommodate sloping ground

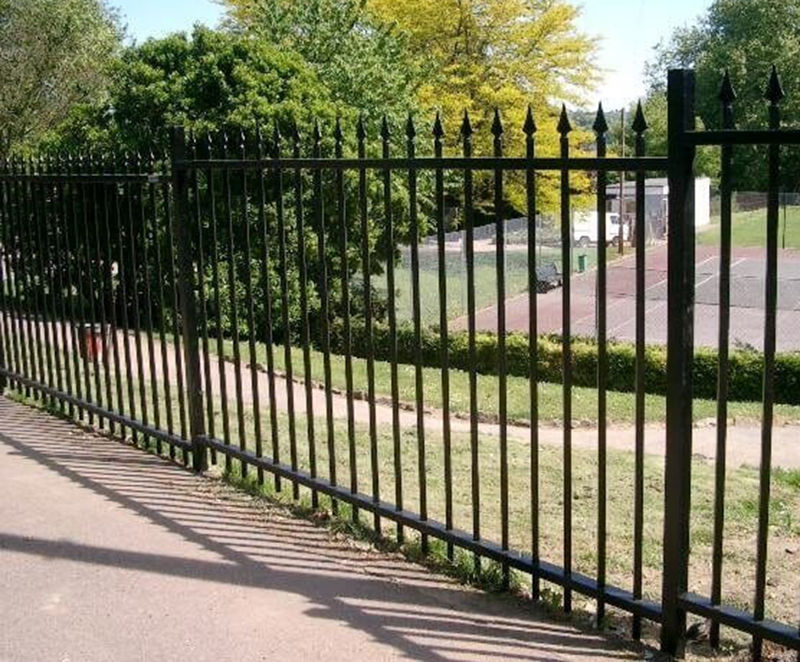

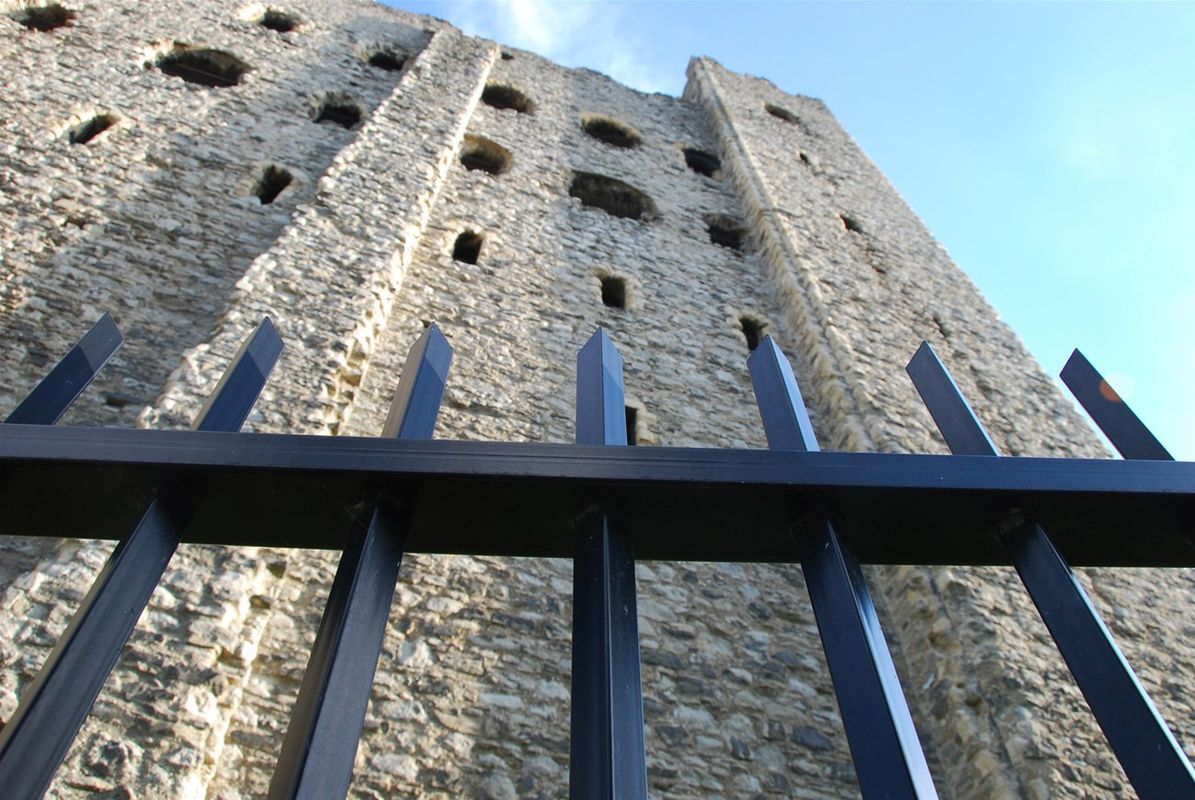

Pales can be specified to include finials
Matching gates available

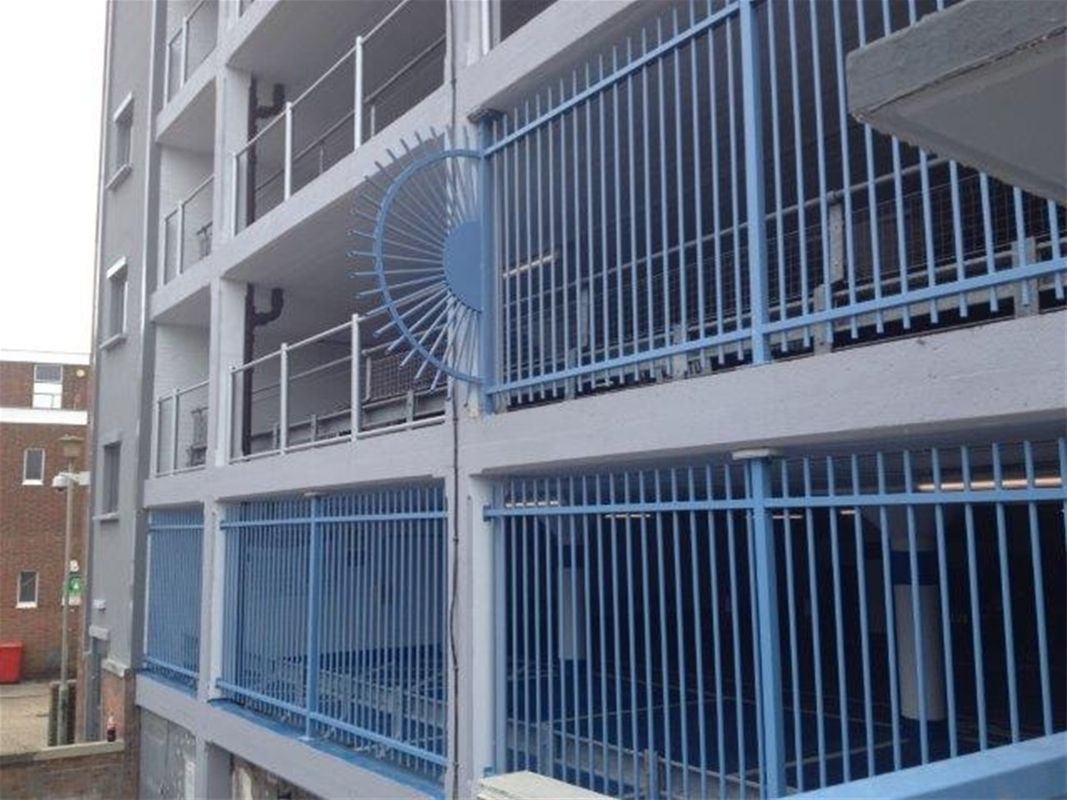

Posts can be customised for Barbed wire / Razor wire / Rota Spike®
Vertical pale spacing conforms to building regulations for anti-trap

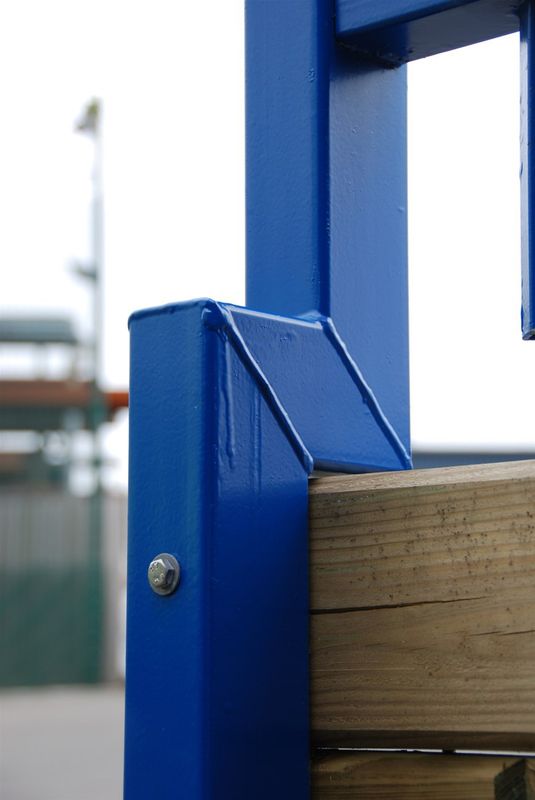

Unique vandal-proof panel to post connectors
Matching single leaf and double leaf gates available

Posts

Over length posts (standard)
Option of base plated or cranked available

Dimensions

Overall height 1.0, 1.25, 1.5, 1.8, 2.0, 2.5, 2.9, 3.0m
Wire / bar / pale size 25mm square pales
Post centres 2.4, 3.0m
Post sections 60x60, 80x60

Finishes

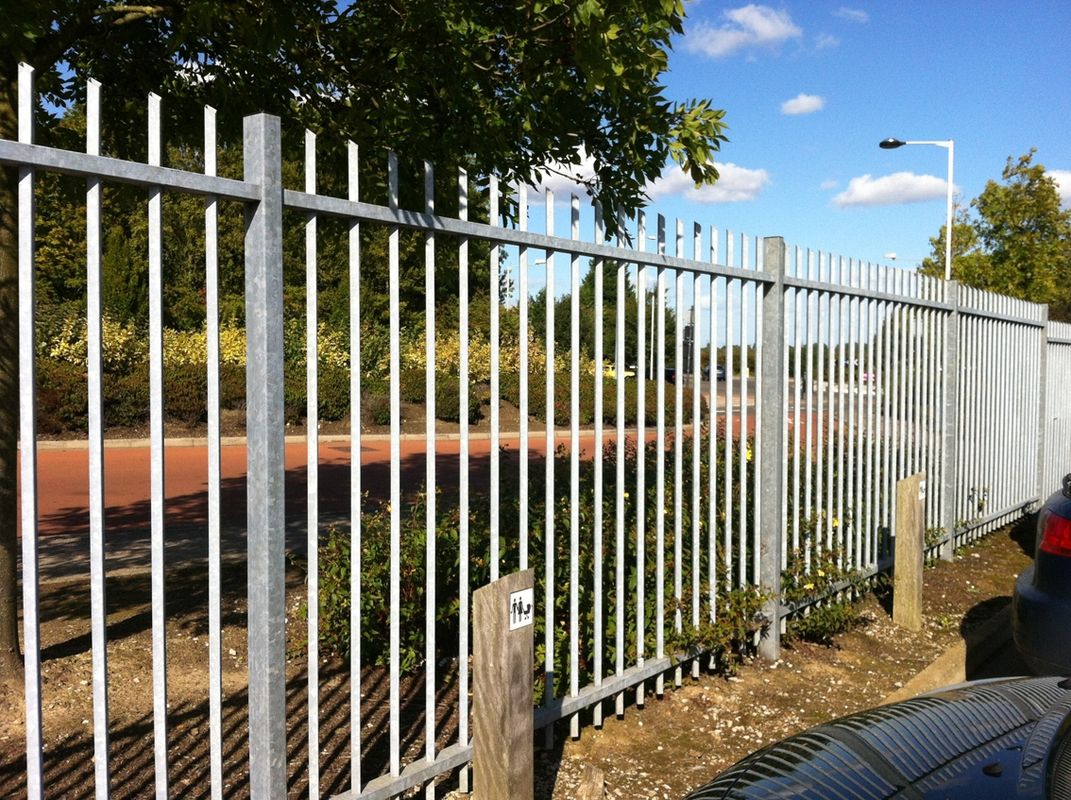

Galvanised to BS EN 1461 as standard
Galvanised and powder coated to BS EN 13438 in one of our standard colours (extra cost)
Powder coated to any other BS or RAL colour (special order)

Barbican® Panel Specification

Height (mm)	Post Centres (mm)	Post Dimensions (mm)	Overall Post Length (mm)
1000	3000	60 x 60	1600
1250	3000	60 x 60	1800
1500	3000	60 x 60	2100
1800	3000	60 x 60	2500
2000	3000	60 x 60	2800
2500	3000	80 x 60	3300
2900	2484	80 x 60	3700
3000	2484	80 x 60	3800
