Sector Industrial
Project type New build
Services provided Product / system supply
Project location East Midlands
Client Volume Developments
Products used Italia-80 steel panels; Roma-3 fencing



Challenge

TORC:MK in Milton Keynes is a prime industrial location of twelve warehouse units totalling 81,000 sq ft. The scheme by Volume Developments was constructed to a high quality specification.

Solution

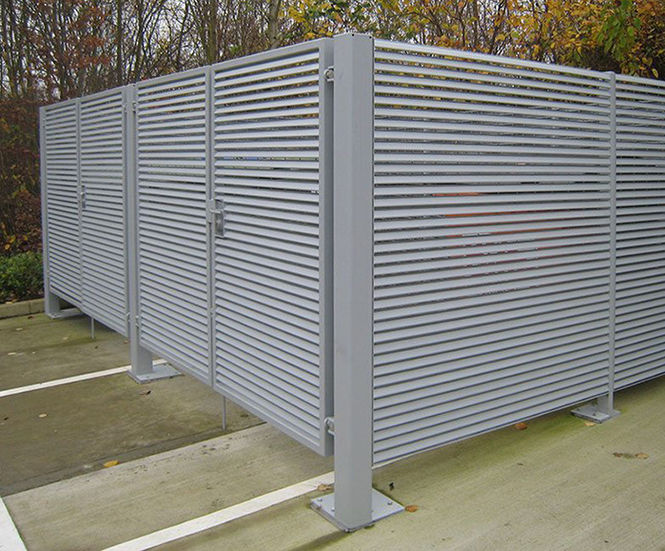

Lang+Fulton supplied four 1800mm high bin stores designed from their modular system of Italia-80 steel panels which provide 80% visual screening. A special 50x50mm RHS galvanized bump rail was fitted to the interior for added protection from the industrial wheelie bins. Two installations were 4m wide, the other two were 5.2m wide. The gates were supplied with anti-lift drop bolts and euro-profile locks; the posts were fitted with base plates for ground fixing.

500 metres of 1800mm high Roma-3 fencing with flat bar posts was also supplied for an adjoining boundary with a cranked extension to one section. All steelwork was hot-dip galvanized and polyester powder coated in silver RAL9006.


Challenge

TORC:MK in Milton Keynes is a prime industrial location of twelve warehouse units totalling 81,000 sq ft. The scheme by Volume Developments was constructed to a high quality specification.

Solution

Lang+Fulton supplied four 1800mm high bin stores designed from their modular system of Italia-80 steel panels which provide 80% visual screening. A special 50x50mm RHS galvanized bump rail was fitted to the interior for added protection from the industrial wheelie bins. Two installations were 4m wide, the other two were 5.2m wide. The gates were supplied with anti-lift drop bolts and euro-profile locks; the posts were fitted with base plates for ground fixing.

500 metres of 1800mm high Roma-3 fencing with flat bar posts was also supplied for an adjoining boundary with a cranked extension to one section. All steelwork was hot-dip galvanized and polyester powder coated in silver RAL9006.
