Product accreditation EN 1433: Class D400

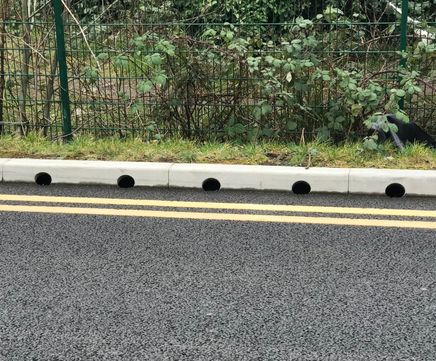

Marshalls Mono Beany is a low- to medium-capacity, one-piece combined kerb and drainage syste that has evolved from Marshalls' Beany Block.

Mono Beany combines a combination of Marshalls M-Tech high-strength concrete, which is cast around a 100% recycled polyethlene core to provide hydraulic flow benefits at low and medium capacities.

Mono Beany is available in half battered and 45° splay profiles and two invert depths. The inlet apertures are divergent and angled at 45° to prevent blockages and maximise drainage efficiency. These features ensure surface water is cleared rapidly and internal flow is smooth and efficient.

Each one metre unit can carry up to 40 tonnes (Class D400) when trafficked, which makes it suitable for all road-going vehicles.


Marshalls Mono Beany is a low- to medium-capacity, one-piece combined kerb and drainage syste that has evolved from Marshalls' Beany Block.

Mono Beany combines a combination of Marshalls M-Tech high-strength concrete, which is cast around a 100% recycled polyethlene core to provide hydraulic flow benefits at low and medium capacities.

Mono Beany is available in half battered and 45° splay profiles and two invert depths. The inlet apertures are divergent and angled at 45° to prevent blockages and maximise drainage efficiency. These features ensure surface water is cleared rapidly and internal flow is smooth and efficient.

Each one metre unit can carry up to 40 tonnes (Class D400) when trafficked, which makes it suitable for all road-going vehicles.
