Work undertaken Boardwalks
Material Timber / wood
Services Site survey
Design
Project management
Installation

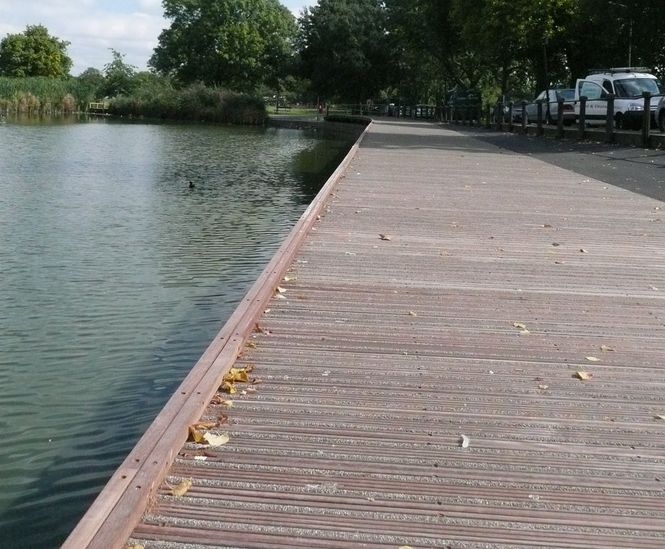

Having worked with CTS Bridges on many other successful schemes, FM Conway approached the company to carry out the design, manufacture and installation of a new hardwood boardwalk at Clapham Common Mount Pond in Lambeth, London.

CTS’ in-house engineers designed the boardwalk to a live load of 5kN/m2, equivalent to a crowd loading.

It is made from FSC ekki hardwood, runs to an overall length of 63m, and is 3m wide.

Hi-Grip Excel non-slip inserts in the deck provide a safe walking surface for the general public.

CTS’ installation team prepared the sub-frame for the deck laid onto a concrete strip footing provided by FM Conway. A hardwood kerb was fitted to the outer edge of the boardwalk.


Having worked with CTS Bridges on many other successful schemes, FM Conway approached the company to carry out the design, manufacture and installation of a new hardwood boardwalk at Clapham Common Mount Pond in Lambeth, London.

CTS’ in-house engineers designed the boardwalk to a live load of 5kN/m2, equivalent to a crowd loading.

It is made from FSC ekki hardwood, runs to an overall length of 63m, and is 3m wide.

Hi-Grip Excel non-slip inserts in the deck provide a safe walking surface for the general public.

CTS’ installation team prepared the sub-frame for the deck laid onto a concrete strip footing provided by FM Conway. A hardwood kerb was fitted to the outer edge of the boardwalk.
