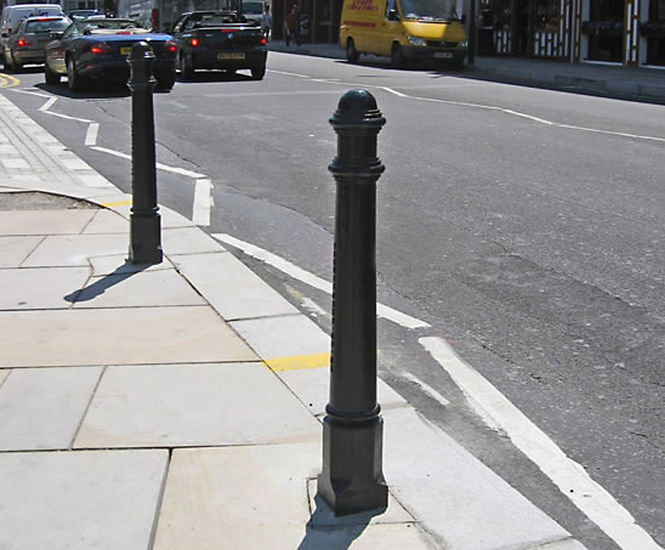

The Hammersmith bollard gets its name from the town where it was first placed. It is a cast S.G ductile iron bollard with a primed finish, and has a classic design, with a domed top and decorative rings. When installed over 1000mm, this bollard can aid the visually impaired and assist in meeting the requirements of the Disability Discrimination Act (DDA). It complies with BS 8300.

The Hammersmith is available as a removable bollard in cast aluminium and can be housed in either a hinged steel socket (to be secured with a padlock) or the F1 socket, which provides a flat, flush finish when not in use.

Materials & Finishes

  • Cast iron - primed finish

  • Cast aluminium - primed finish

Options

  • Removable - standard or F1 socket

  • Crest & logos

  • Highlighted rings

Installation

  • Root fixed

    • Foundation depth is usually the same as the root depth of the bollard

    • Minimum recommended foundation diameter is the root diameter plus 200mm

    • Concrete mix to 25 newtons

  • Removable

    • Foundation depth 320mm

    • Minimum recommended foundation 450mm sq

    • Dig an additional drainage hole 80mm (d) x 150mm (sq) and fill with pea shingle (directly below socket)

    • Concrete mix to 25 newtons

Refer to downloadable PDF for full specification details.
