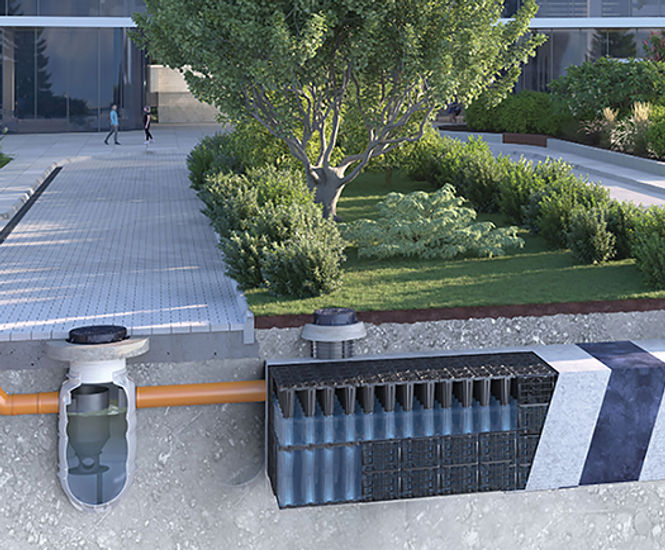

ACO Q-Brake Vortex is a horizontal vortex flow control unit for regulating stormwater discharge to prevent downstream flooding. Made from grade 304 stainless steel, it is self-activating, low-maintenance, and custom-built to suit site-specific flow rates from 2–100 l/s and design heads up to 3m. Suitable for new and retrofit drainage schemes, it is approved by multiple UK water authorities.

  • Horizontal vortex flow control for stormwater management

  • Individually configured for site-specific hydraulic performance

  • Reduces on-site storage needs, lowering installation costs

  • Low-maintenance with remote access for emergency drain down

  • Large clear opening reduces risk of blockages

  • Flexible fitting options for different manhole chamber profiles

  • Approved by Severn Trent, Anglian and Scottish Water

Applications

  • Public highways

  • Public landscaping

  • Car parking

  • HGV parking

  • Petrol station forecourts

  • Light and heavy industrial sites

  • Distribution yards

  • Airports (airside), ports and dock sides

  • Security areas

  • SuDS

Performance

Flow rates: from 2–100 litres per second

Design head: up to 3m

Materials

Made from grade 304 stainless steel

Options and variations

Curved or flat back options

Custom-built to suit site requirements

Accreditations

Approved by Severn Trent, Anglian and Scottish Water

Technical support

Design advice, BIM and conduit files and design tools available
