Product name Lanark Lantern
Suitability Amenity areas
Car parks
Major roads
Minor roads
Style Contemporary
Installation Post mounted
Wall mounted
Light source Compact fluorescent
High pressure sodium
LED
Mercury vapour
Metal halide
Canopy / casing material Aluminium
Glazing / diffuser material Polycarbonate
Light distribution Asymmetrical distribution
Direct distribution
Symmetrical distribution
Ingress protection IP66

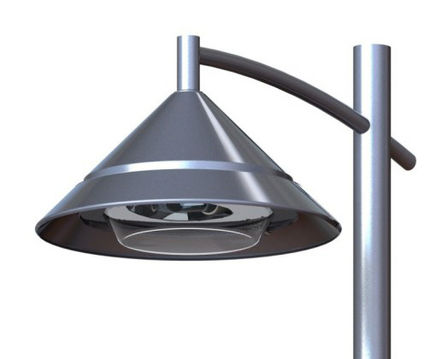

The Lanark is a modern luminaire with an attractive style that complements contemporary architecture and modern developments.

The Lanark can accommodate various optic options to reduce light pollution and sky glow, while providing a variety of light distributions appropriate for most applications.

Based around a cast aluminium chassis, the lantern offers hinged lamp and gear access along with an IP66 optical compartment

It is suitable for up to a 250W lamp and gear.

  • Modern architectural luminaire
  • 4 to 8m recommended mounting height
  • Ideal for commercial and public realm schemes
  • Optics to reduce light pollution and sky glow
  • LED’s can be fitted with a variety of street optical lenses
  • Cast aluminium chassis
  • IP66 optical compartment

Material

The chassis is cast aluminium LM6. The top canopy and shade are spun aluminium. The glazing bowl is a polycarbonate vacuum formed moulding.

Dimensions

  • Diameter: 720mm
  • Profile height: 360mm
  • Recommended height: 4 to 8m

Finishes

The Aluminium body and brim are treated with a chromate and then can be polyester powder coated any BS or RAL colour.

Ingress protection

Optical compartment is IP66 rated. Gear compartment is IP44 rated.

Optics

Can be fitted with the Candela EV and SGS range of street optics. LEDs can be fitted with a variety of street optical lenses.


The Lanark is a modern luminaire with an attractive style that complements contemporary architecture and modern developments.

The Lanark can accommodate various optic options to reduce light pollution and sky glow, while providing a variety of light distributions appropriate for most applications.

Based around a cast aluminium chassis, the lantern offers hinged lamp and gear access along with an IP66 optical compartment

It is suitable for up to a 250W lamp and gear.

  • Modern architectural luminaire
  • 4 to 8m recommended mounting height
  • Ideal for commercial and public realm schemes
  • Optics to reduce light pollution and sky glow
  • LED’s can be fitted with a variety of street optical lenses
  • Cast aluminium chassis
  • IP66 optical compartment

Material

The chassis is cast aluminium LM6. The top canopy and shade are spun aluminium. The glazing bowl is a polycarbonate vacuum formed moulding.

Dimensions

  • Diameter: 720mm
  • Profile height: 360mm
  • Recommended height: 4 to 8m

Finishes

The Aluminium body and brim are treated with a chromate and then can be polyester powder coated any BS or RAL colour.

Ingress protection

Optical compartment is IP66 rated. Gear compartment is IP44 rated.

Optics

Can be fitted with the Candela EV and SGS range of street optics. LEDs can be fitted with a variety of street optical lenses.
