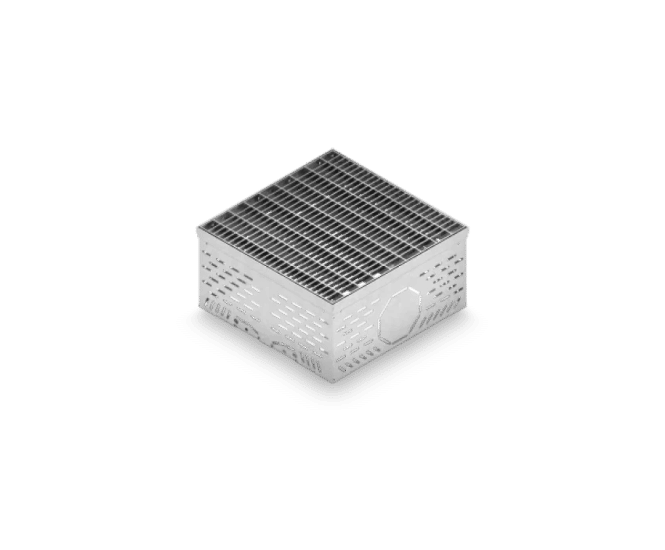

DACHFIX POINT is a point drainage system for flat roofs, balconies, and roof terraces, made from galvanised steel or stainless steel. Connects to DACHFIX STEEL façade channels. Gratings are suitable for pedestrian and wheelchair access. Modular construction allows flexible height adjustment with stackable units in 55mm, 70mm, and 150mm heights. Size options 300x300mm and 400x400mm.

  • Point drainage system for outdoor surfaces such as roofs and terraces

  • Made from galvanised steel or stainless steel for durability

  • Stackable modular units allow flexible height adjustment on site

  • Gratings support pedestrian and wheelchair access

  • Compatible with DACHFIX STEEL façade channels

  • Multiple grating options for design flexibility

Applications

  • Flat roofs, balconies, and roof terraces

Dimensions

300 x 300mm

400 x 400mm

Heights: 55mm, 70mm, 150mm

Grating dimensions: 290 x 290, 390 x 390mm

Materials

Galvanised steel

Stainless steel 304

Options and variations

  • Frame heights: 55 mm, 70 mm, or 150 mm - stackable in combination

  • Frame finish: galvanised or stainless steel

  • Grating type: mesh grating (MS 30/10 mm) or longitudinal bar grating (12 mm bar distance)

  • Grating finish: galvanised or stainless steel

  • Locking sets: stainless steel

Performance

Suitable for pedestrian and wheelchair traffic

Installation

Modular units can be stacked and combined on site

Product accreditations

Load classes to EN 1433 standard
