- System type
- Slotted
- Load class
- EN 1433: Class F900
- Suitability
- Civic / industrial

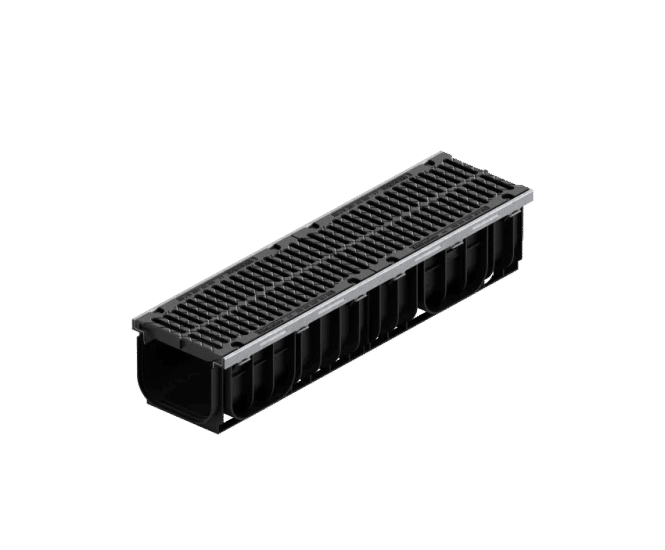

RECYFIX NC X is a heavy-duty drainage channel system designed for areas with high static and dynamic loads and frequent vehicle traffic. Made from corrosion-resistant polypropylene with a steel frame and cast iron grating cover for load class F900. KTL-coated components improve corrosion protection. Eight bolts per metre for high static loads.
Heavy-duty drainage channel for high-load and high-traffic environments
Cast iron grating cover and steel frame for F900 for maximum load-bearing
Corrosion-resistant polypropylene body for durability
Eight bolts per metre for secure grating retention
KTL-coated components for enhanced corrosion resistance
Improved longitudinal shear protection for stability during crossings
Applications
Airports, ports, and container terminals
Racing and test tracks
Industrial yards and loading areas
Roads, logistics centres, and commercial areas
Dimensions
RECYFIX NC X 100, class F 900
Type 01
Length 500 or 1000 mm
Width 165 mm
Height 152 mm
Weight 8.12 or 16.31kg
Nominal size 100
Type 010
Length 500 or 1000 mm
Width 165 mm
Height 202 mm
Weight 8.39 or 16.93 kg
Nominal size 100
Type 020
Length 500 or 1000 mm
Width 165 mm
Height 252 mm
Weight 8.82 or 17.81 kg
Nominal size 100
Type 75
Length 1000 mm
Width 165 mm
Height 77 mm
Weight 15.65 kg
Nominal size 100
RECYFIX NC X 150, class F 900
Type 01
Length 500 or 1000 mm
Width 217 mm
Height 212 mm
Weight 11.60 or 23.36 kg
Nominal size 150
RECYFIX NC X 200, class F 900
Type 010
Length 500 or 1000 mm
Width 267 mm
Height 202 mm
Weight 13.59 or 27.26 kg
Nominal size 200
Materials
Polypropylene channel body
Steel frame
Cast iron grating
Finish
KTL-coated components
Performance
Load class F900 (EN 1433)
Corrosion-resistant and durable
Installation
Eight bolts per metre for grating fixation
Product accreditations
Conforms to EN 1433 load class F900
