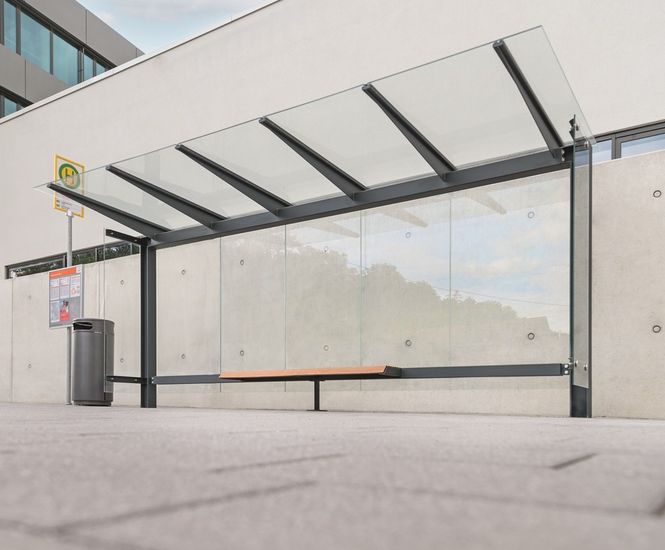

Stingray is a modular bus shelter made from galvanised steel with a flat laminated tempered glass roof and walls, supplied with a hardwood or thermo-treated pine bench. Configurations include three, four or five modules in two depths, with optional LED spotlights, side glass panel and A3 aluminium notice board.

  • Modular shelter system for bus stops and public spaces

  • HEB beam structure with sheet steel base plates

  • Laminated tempered glass roof and walls for durability and visibility

  • Bench in hardwood or thermo-treated pine included

  • Optional LED spotlights and side glass panel

  • All metal parts galvanised and polyester powder coated

  • Stainless steel fixings for corrosion resistance

  • Prepared for ground fixing with anchor plates to concrete

Applications

  • Bus stops

  • Public transport waiting areas

  • Urban streetscapes

  • Transport interchanges

  • School or campus pick-up points

  • Retail or commercial developments

Dimensions

L: 3375mm, 4325mm, 5275mm

W: 1498mm, 1798mm

H: 2370mm

Materials

Galvanised steel structure

Laminated tempered glass roof and walls

Bench in hardwood or thermo-treated pine

Stainless steel fixings (AISI304)

Finish

Polyester powder coated metal parts

Options and variations

Three, four, or five modules

Two depth options

Optional LED spotlights

Optional side glass panel (5+5 mm thick)

Optional A3 aluminium snap-in notice board

Installation

Ground fixing with included anchor plates to concrete
