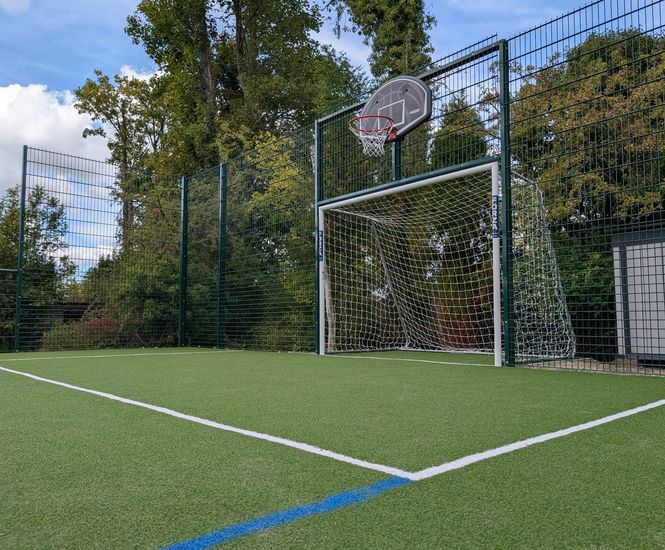

Protek® 868 Rebound by Alexandra Security is a mesh sports fencing system made for football, tennis, hockey and multi-sport areas, with panels using tighter wire spacing at the base to improve ball rebound and prevent ball escape. Mesh wire size is 6mm vertical and 8mm horizontal.

  • Mesh fencing system for sports with enhanced rebound at lower panel sections

  • Tight wire spacing at the base helps balls bounce back and stay within play areas

  • Good visibility for spectators due to wider wire spacing at the top

  • Panels can be stepped to follow ground contours

  • Compatible with matching gates and sports accessories

  • Supplied with vandal-resistant security fixings

  • Standard 15-year product guarantee

Applications

  • School playgrounds

  • Sports fields

  • Basketball courts

  • 5-a-side football pitches

  • Hockey courts

Specification

Nominal Fence Height (m)

Panel Size Height x Width (mm)

Post Size (mm) Ends/Inters

Post Size (mm) Internal Corner

Post Size (mm) External Corner

Overall Length of Post (mm)

Ends/Inters (1 Clamp)

Corners (2 Clamps)

3.0

3,030 x 2,506

80 x 40

80 x 40

80 x 80

3,750

12

24

3.6*

3,660 x 2,506

80 x 40

80 x 40

80 x 80

4,600

15

30

4.0*

4,060 x 2,506

100 x 50

100 x 50

80 x 80

5,100

16

32

4.5*

4,460 x 2,506

100 x 50

100 x 50

80 x 80

5,500

21

42

5.0*

5,060 x 2,506

100 x 50

100 x 50

80 x 80

6,200

21

42

6.0*

6,080 x 2,506

120 x 60

120 x 60

100 x 100

7,500

24

48

Materials

Mesh panel wire made from steel

Finish

Galvanised and powder-coated (standard colour green, other RAL colours on request)

Options and variations

Standard rebound panel

Full-height rebound panel

Other heights on request

Performance

Mesh panel wire manufactured to BS 4102

Galvanised to BS EN standards

Installation

Panels fixed with full-length clamp bars and vandal-resistant security fixings

Panels can be stepped to follow ground profile

Warranty

15-year product guarantee
