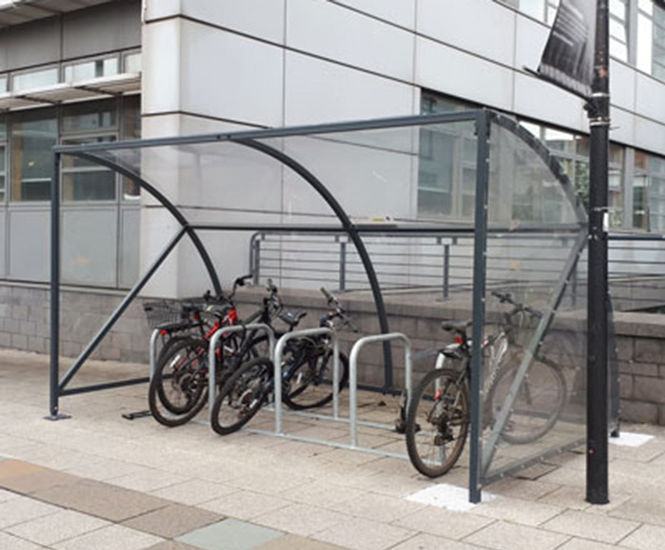

Echelon™ is a cost-effective, pre-assembled solution to bike storage. Delivered fully assembled, ready for immediate installation with self-tapping anchor bolts which are supplied as standard. Optional polycarbonate end panels and cycle toast rack stands for storage of up to 10 bicycles are also available.

The shelter has been tested by a structural engineer to ensure it can withstand strong winds and harsh weather conditions.

The robust 3mm thick Armortec®-coated mild steel frame ensures the shelter has a long service life, and the curved polycarbonate panels provide overhead shelter.

The standard model (frame and clear, curved polycarbonate back panels) is delivered pre-assembled. It does not require any drilling, preventing damage to the frame and preserving the Armortec coating which protects the frame from corrosion.

Echelon is supplied ready for immediate surface fixing on to concrete using the self-tapping anchor bolts supplied. The minimum base size required is 4115 x 2285mm and should be flat, level and a minimum thickness of 200mm concrete on to hardcore.

Store up to 10 cycles with a choice of Glasdon cycle toast racks.

Provide additional cover from the elements with the option of polycarbonate end panels.

Features

  • Standard model is pre-assembled with rivnuts fitted into Armortec-coated holes to prevent corrosion of steel frame.

  • Provides storage for up to 10 bikes.

  • Curved design helps natural fall-off of rain and snow.

  • 3mm-thick Armortec-coated steel frame ensures long service life.

  • Standard model supplied fully assembled and off-loaded by a crane equipped vehicle, ready for immediate fixing to a prepared concrete base.

  • Built to withstand strong winds and harsh weather.

  • UV-protected 3mm polycarbonate back panels.

  • 4 x 12mm-thick adjustable feet with fixing points for 3 self-tapping anchor bolts in each, providing stability and reducing ground leverage.

  • Self-tapping anchor bolts supplied as standard.

Colours

Anthracite Grey

Options

  • Polycarbonate end panels. Some customer assembly required.

  • Glasdon cycle toast rack - for storing up to 10 bikes.

  • Tamper-resistant Armorings Kit (kit of 12) - for covering 12 x ground fixings. Use in conjunction with each ground fixing for additional security.

Materials

Frame: Armortec-coated mild steel
Panels: clear polycarbonate

Dimensions

Height: 2195mm

Width: 4000mm

Depth: 2170mm
