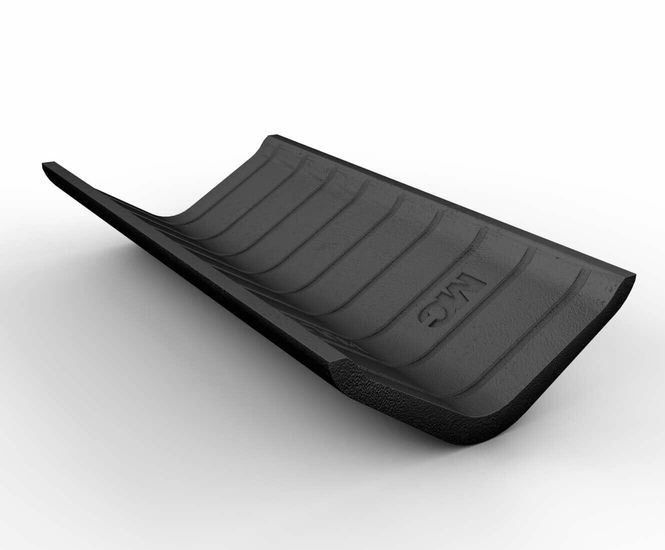

Multi Ridge - concrete roof tile
Multi Ridge Concrete Roof Tile by FP McCann is designed for use at the ridge and hip of pitched roofs. Suitable for flat tile and slate systems, it can be fixed using McCannFast dry fix systems or mechanically secured and bedded with mortar in compliance with BS5534. Compatible with flat tiles and slates; can be used on ridge and hip sections
Multi Ridge Concrete Roof Tile by FP McCann is designed for use at the ridge and hip of pitched roofs. Suitable for flat tile and slate systems, it can be fixed using McCannFast dry fix systems or mechanically secured and bedded with mortar in compliance with BS5534.
Features and benefits
Compatible with flat tiles and slates
Can be used on ridge and hip sections
Fixed with McCannFast dry fix or mortar bedding
Complies with BS5534
Applications
Suitable for residential and commercial pitched roofing.
Physical attributes
Length: 457mm
Width: 250mm
Height: 80mm
Weight per tile: 5kg
Maximum roof pitch: 45°
Materials
Concrete
Options
Colour options include Anthracite and Brown.
Installation
Can be installed using McCannFast dry fix system or mechanically fixed and bedded with mortar.
