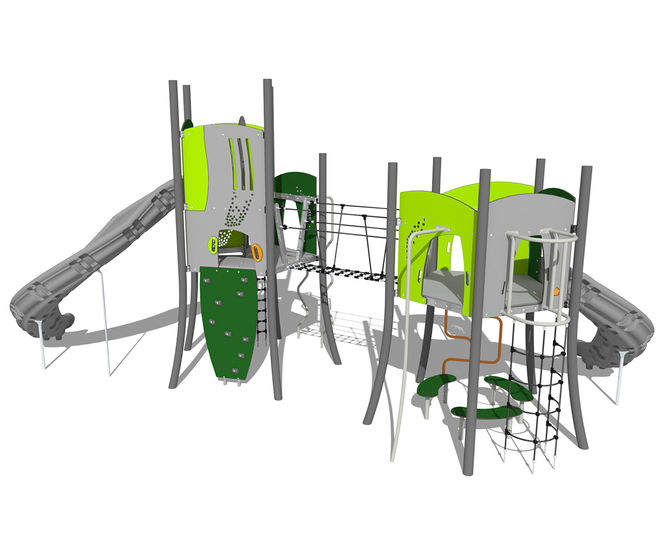

Helix is the largest and most ambitious unit in the Pentagon range, and offers an array of thrilling play opportunities for children of junior age.

It features two towers at heights of 1.6m and 3.9m, along with a 1.6m transfer deck, and a connecting ‘V’ Bridge. A series of ropes and climbing walls afford entry to the upper levels, whilst two curved, trough shaped slides at 2.4m and 1.6m high deliver an exhilarating ride back to ground level for young adventurers.

Direct access to the 2.4m tower can be gained from a Crevasse Ladder, a Zigzag Climber and an inclined net, whilst entry to the 1.6m tower is afforded via a Circuit Climber, a curved Firemen’s Pole and a Chimney Net.

Beneath this smaller tower, a triple curved seat combination provides a social meeting point for at least six users, offering many opportunities for social fun and interaction.

Additional features include a Scramble Rope Climber, a Mountain Climber, and slotted and dotted Spy Windows on the lower and upper levels.

Helix is available in a lime and pistachio green and grey colourway, enhanced by vivid orange detailing.

This unit can accommodate 29+ users.

All Pentagon multiplay units are specially constructed to provide robust, longlasting service whilst minimising their ‘footprint’ (and therefore the amount of safety surfacing required).

Each is constructed from curved powder coated posts, 100mm by 3mm wall rolled, galvanised steel support frames, 19mm thick HDPE wall panels and non-slip 18mm Hexastrong floor panels.

A box section (80mm x 40mm) support frame provides the design with a stable and robust chassis onto which HDPE and Hexastrong panels are secured. All fixings are tamperproof, and all ropes are 16mm multi steel core.

Suitability Information

  • Age Range: 6 to 14

  • Area: 65.21m2

  • Perimeter: 34.37m

  • HIC: .08 TO 2.4m
