Egoe X1-200L-SS-J02400 - steel and glass bus shelter
Supporting steel structure, with roof and rear walls made of glass with printing, and integrated wooden bench. Frame: welded closed steel profiles and sheets with anti-corrosive protective zinc layer and powder coating. The colour in a fine matt texture can be selected according to the RAL samples. Back wall: 8mm-thick ESG tempered safety glass
Click for full image

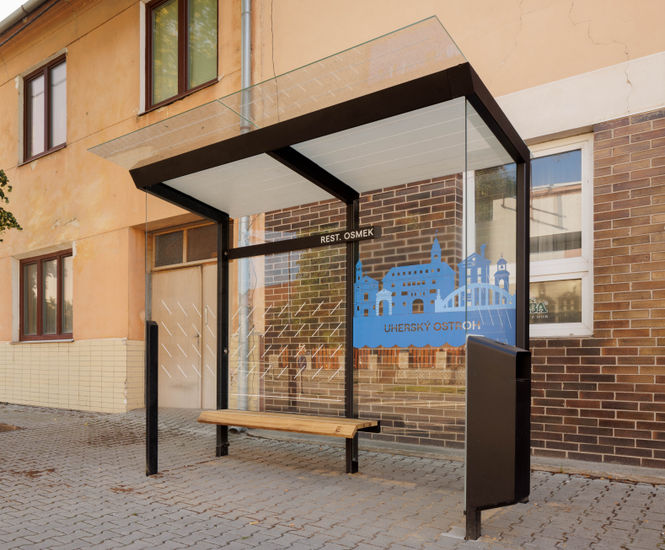

Egoe X1-200L-SS-J02400 steel and glass bus shelter with integrated seating
Supporting steel structure, with roof and rear walls made of glass with printing, and integrated wooden bench.
Specification
Frame: welded closed steel profiles and sheets with anti-corrosive protective zinc layer and powder coating. The colour in a fine matt texture can be selected according to the RAL samples.
Back wall: 8mm-thick ESG tempered safety glass with printing.
Roof: 12mm-thick VSG ESG laminated glass with printing. Flexible glass fixing to the structure. Rainwater or other precipitation runs off the rear edge of the roof onto the ground.
Options
Roof covering: - laminated heat-strengthened glass (VSG TVG) - tempered safety glass (ESG) - green roof with vegetation
