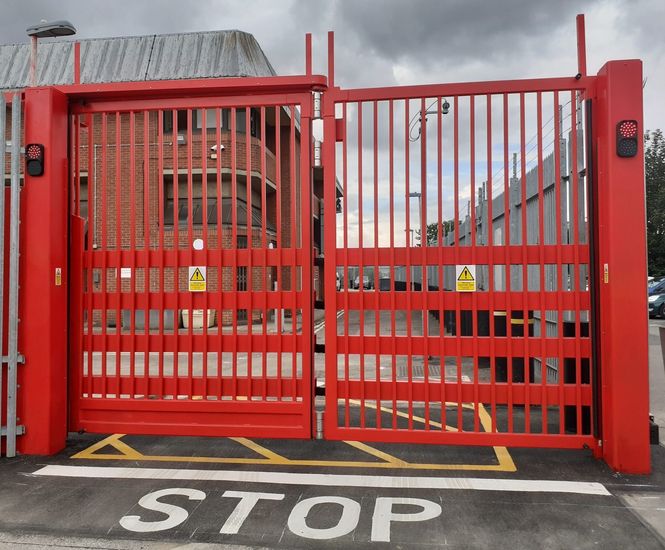

FoldGuard RCS is an impact-tested, automatic bi-folding gate. With three versions available, tested to mitigate the threat of vehicles travelling at 40 and 50mph.

The gate and locking pin are powered by a hydraulic drive unit for consistent and controlled motion, which ensures smooth and quiet operation in both directions. Typically operating in 8-9 seconds plus 3 seconds for the locking pin.

All gates achieved the low penetration with shallow foundations. As a safety precaution, a light curtain, CAT 3 safety edges and an emergency stop button are fitted as standard. Together, these safety devices reduce the risk of entrapments, crushing and shearing, ensuring compliance with British Standards.

In the event of a power cut or fault, the gate can be manually operated. It has a powerful PLC with built in diagnostics and programmable inputs and outputs that can provide numerous options depending on client requirements.

Key features

  • Three versions detailed below; 40mph or 50mph

  • Up to 8m clear opening at 40mph

  • Trackless

  • Smooth and quiet

  • Opening and closing in approximately 8-9 seconds + 3 seconds for locking pin

  • Material: mild steel, hot dip galvanised and powder coated

  • Power: 240Volt 60hz 16amp

  • Standard foundations: 560 x 260 x 38mm

Impact classification

Product

Vehicle Weight (kg)

Vehicle Type

Test Speed (kph)

Impact Angle (°C)

Penitration

Dispersion of Major Debris

FoldGuard RCS Single Leaf (40mph): V/7500(N2)/64/90:0.8/0.0

7,500

N2

64

90

0.8

0

FoldGuard RCS Single Leaf (50mph): V/7500(N3)/80/90:0.7/0.0

7,500

N3

80

90

0.7

0

FoldGuard Vulcan RCS Double Leaf (40mph): V/7200(N2A)/64/90:1.4

7,500

N2A

64

90

1.4

0

Specifications

Configuration

Speed

Max Opening

Max Height

Vehicle Weight

Security Rating Classification

Single Leaf

40mph

4.2m

3m

7.5t

PAS68:2010 V/7500(N2)/64/90:0.8/0.0

Single Leaf

50mph

4.2m

3m

7.5t

PAS68:2010 V/7500(N3)/80/90:0.7/0.0

Double Leaf

40mph

8m

3m

7.2t

IWA14-1:2013 V/7200(N2A)/64/90:1.4
