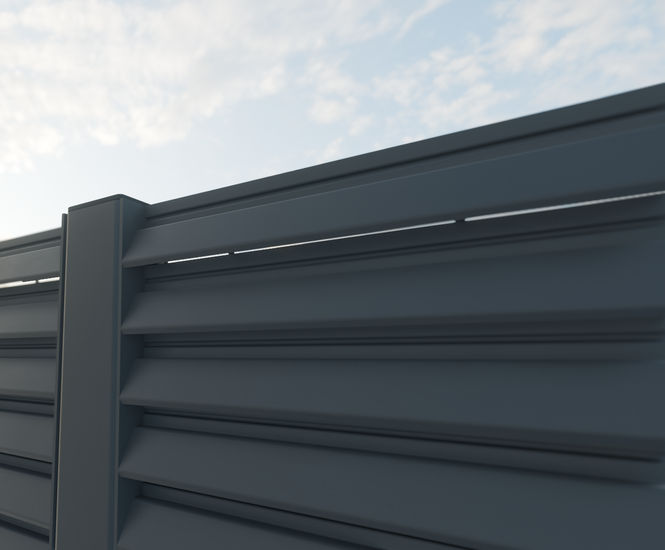

CLD Screenogril is specially designed to limit the visibility of premises whilst also preventing intrusion. Screenogril S2 is available with 100% screening.

This high-security version of an aesthetic perimeter is ideal for use in hospitals, high secure units and schools and offers a minimum of 3 minutes delay against attack.

Features

  • Specialist high-security system to withhold minimum 3 minutes delay

  • Recycled materials

  • Contemporary louvred effect

  • 2 screening level options: 80% and 100%

  • Modular system

Specifications

  • Panel type: louvre panels consisting of triple flanged horizontal louvres, electrofused at 4mm vertical wires to rear spaced at 132mm. Top and bottom flat bars 50 x 3mm. Galvanised and polyester powder-coated to a minimum of 60 microns.
    100/0 vision using 69 x 1.5mm fin louvres

  • Panel width: 1992mm

  • Wire diameter: 4mm

  • Fixings: depending on application

  • Available heights: 100/0 vision: 967 / 1608 / 1975mm, or any combination of these

  • Nominal heights: 2–3m - panels can be modified to bespoke heights if required

  • Finish: polyester powder-coated to 60-80 microns or 160-200 microns with marine grade and metallics; any RAL colour available

  • Panel installation: bottom of panel max 50mm above ground

  • Posts: RHS or SHS depending on application; galvanised post-manufacture and polyester powder-coated to match

  • Warranty: minimum 15 years against manufacturing defects

Standards

  • LPS 1175 B3 (Issue 8)

  • Secured by Design

  • BS 1722-14:2017

  • BS EN ISO 1461:2009

  • BS EN 13438:2013
