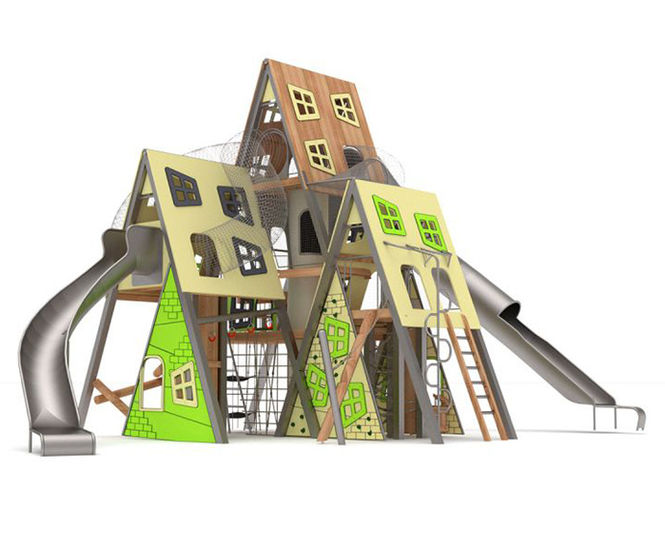

Play Houses Big 3 multiplay unit consists of 3 separate sections:

Big playhouse with roof ridge

  • Gabled roof made of robinia with 6 HPL windows and 2 HPL gable claddings, sealed with acrylic glass

  • Curved slide, u-shaped

  • 4 grid tunnels made of stainless steel

  • Climbing tunnel made of stainless steel with floor

  • Climbing tunnel, rear with closed window

  • Seating arrangement made of robinia, 1 table and 3 seats

  • Ladder to the platform, PH 180cm

  • Gable ascent made of stainless steel

  • Vertical net ascent

  • HPL wall with hole for net ascent

  • Climbing pole

  • 1 pair of suspended seats under the platform

  • Climbing ropes with steps

Middle-sized playhouse with roof ridge

  • Gabled roof made of robinia with 6 HPL windows and 2 HPL gable claddings, sealed with acrylic glass

  • 3 climbing walls made of robinia

  • Spiel-Bau slide, u-shaped

  • 2 grid tunnels made of stainless steel

  • Beam with roman rings under the platform

  • 3 balance beams made of robinia under the platform

Small playhouse with roof ridge

  • Gabled roof made of robinia with 5 HPL windows and 2 HPL gable claddings, sealed with acrylic glass

  • Zig-zag climbing pole

  • Ladder to the platform, PH 200cm

  • Chicken ladder with safety rope

  • Rope ascent

  • Play wall with play shelf

  • Small balustrade with sand chute

  • Pulley with stainless steel chain and rubber bucket

  • Sand sieve made of stainless steel

  • Several balustrades and railings

Technical details

All support posts made of stainless steel tube ø101,6mm. Visible ends of the posts are welded to a stainless steel cap.

All stainless steel surfaces are radiated with glass marbles according to environmental protection rules.

Connection between platform / railing and support posts through stainless steel press-in threaded sleeves.

Platform fixed by use of concentrical incorporated stainless steel brackets.

All wooden parts made of planed and chamfered robinia. All wooden parts are untreated.

Connections railing / support post through countersunk diagonal hole and stainless steel screws with special key head-theft protection. Connection point net / rope with support posts through specifically formed stainless steel fork and tensible stainless steel chain.

Nets made of Hercules rope. All connecting parts made of stainless steel or galvanised. Use of self-locking nuts only.

Drying cracks are normal in all native hard woods, also after appropriate storage and professional treatment.
