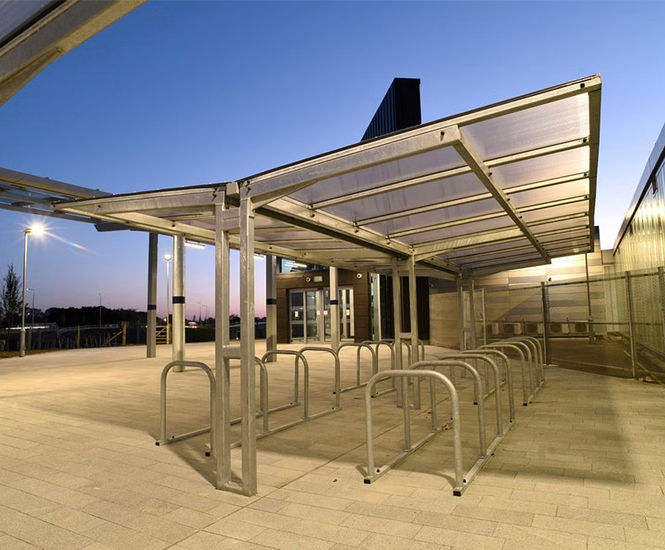

Coventry Gullwing Cycle Shelter is a modular cycle shelter system with a distinctive wing-shaped roof, designed to protect bicycles from the weather and enhance urban spaces. Made from heavy-duty steel with polycarbonate roof cladding, it accommodates up to 24 cycles and can be linked for larger capacity.

  • Architectural cycle shelter with a signature wing-shaped roof

  • Accommodates 16 to 24 cycles per unit,

  • Made from heavy-duty steel with welded end frames and anti-tamper bolts

  • 16mm multiwall polycarbonate roof

  • Hot dip galvanised to BS EN ISO 1461

  • Compatible with a range of cycle racks and stands

Applications

  • Urban streetscapes

  • Schools and universities

  • Transport hubs

  • Business parks

  • Public buildings

  • Leisure centres

Dimensions

  • Lengths: 3600mm, 4100mm, 5000mm

  • Width: 4880mm

  • Overall height: 2504mm

  • Capacity: 16, 20, or 24 cycles per unit

Materials

  • Heavy-duty steel frame

  • 16mm structured multiwall polycarbonate roof

Colours

Nimbus Grey, Traffic Red (RAL 3020), Black (RAL 9005), Holly Green, Yellow (RAL 1023), Goose Grey, Mid Blue (RAL 5015), Dark Blue (RAL 5013), White (RAL 9016), Anthracite Grey (RAL 7016), White Aluminium (RAL 9006), Midnight Blue, Moss Green (RAL 6005), Dark Admiralty Grey

Finish

Hot dip galvanised to BS EN ISO 1461

Powder coated options

Options and variations

  • Steel Profile Trapezoidal Roof Cladding

  • Powder coating to a wide range of colours

  • LED or Solar Lighting

  • Multiple banks to increase cycle capacity

  • Installation Service

  • Range of Cycle Racks

  • Range of Cycle Stands

Accreditations

Galvanised to BS EN ISO 1461:2009

Compliant with Eurocode wind loading BS EN 1991-1-4:2005

Manufactured under EN 1090 CE Mark
